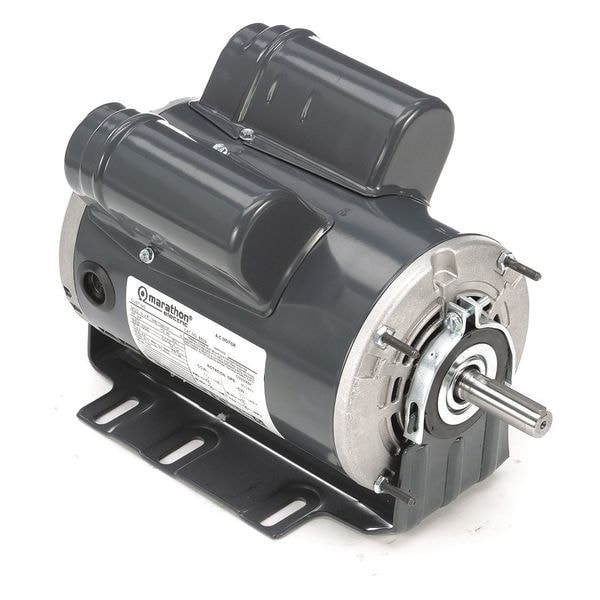

Capacitor-Start Fan and Blower Motor, 3/4 HP, 277V AC Voltage, 56 Frame, 1,725 Nameplate RPM

  • Mfr # 056B17D2013

  • Zoro # G0767737

product price:  $439.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Resilient Base
HP
3/4
RPM Range
1,701-1,800
Voltage
277V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
056B17D2013
Zoro #
G0767737
UPC #
-
Country of Origin
Mexico

Dimensions

Manufacturers Warranty Length
1 yr
Shaft Length
1 31/32 in
Length Less Shaft
9 1/2 in
Overall Length
11 15/32 in
Shaft Dia.
5/8 in
Body Dia.
5 5/8 in
Shaft Diameter
5/8 in
Frame Size
56
Body Diameter
5.7 in

Details

Item
Fan and Blower Motor
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Resilient Base
HP
3/4
RPM Range
1,701-1,800
Voltage
277V AC
Frame
56
Motor Thermal Protection
None
Motor Service Factor
1.25
No. of Speeds
1
Voltage Compatibility
277V AC
Motor Application
HVAC/R
Nameplate RPM
1,725
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Motor Shaft Rotation
CCW
Motor Design
Capacitor-Start
Standards
CSA, UL
Hz
60
Max. Ambient Temp.
158 Degrees F
Full Load Amps
4.3 A
Nominal Efficiency
72 %
Phase
Single
Ins. Class
B
Motor Bearings
Ball
Duty Cycle
Continuous
Weight
27 lb
Number of Speeds
1
Ambient Temperature - Maximum
70 Degrees C
Bearing Type
Ball
Frame Material
Steel
Duty
Continuous
Manufacturers Warranty
1 yr
Full Load Current @ 60 Hz
4.3 A
Frequency
60 Hz
Shaft Design
Keyed
Mounting Position
Horizontal
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1.25
Application
Fan/Blower
Motor Enclosure Type
Open Drip Proof
Product Type
Fan and Blower Motor
Drive Type
Belt Drive

Description

Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 277V AC, 4.3 A Full Load Amps, 56 Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel
