Shop CENTURY

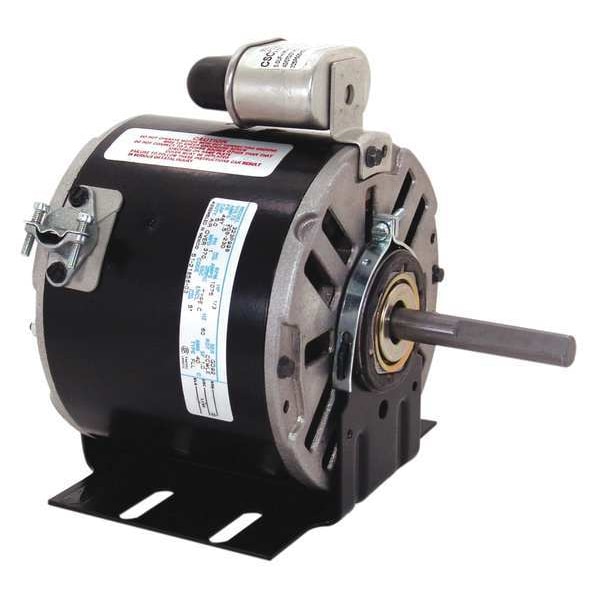

Motor, 1/3 HP, OEM Replacement Brand: Hill Refrigeration Replacement For: 5KCP39KG1369BS

  • Mfr # 160A

  • Zoro # G1804205

product price:  $252.99
/ea
Free Shipping & Returns

Key Features

Frame
F48Y
HP
1/3 HP
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Semi Enclosed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
160A
Zoro #
G1804205
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2"
Shaft Length
4 in
Length Less Shaft
5 1/8 in
Body Dia.
5.7"
Manufacturers Warranty Length
1 yr
Overall Length
9.11"
Wire Rope Length
9 1/8 in
Frame Size
48Y
Body Diameter
5.7 in
Shaft Diameter
1/2 in

Details

Frame
F48Y
HP
1/3 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Semi Enclosed
Motor Mounting Type
Resilient Base
Motor Shaft Rotation
Reversible
Motor Sub Application
Condenser Fan Motor
Motor Thermal Protection
Automatic
Nameplate RPM
1625 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Hill Refrigeration
Phase
1
RPM Range
1601-1700
Voltage
208-230V
Motor Bearings
Sleeve
Replacement For
5KCP39KG1369BS
Ins. Class
B
Max. Ambient Temp.
60 Degrees C
Duty
Air Over
Full Load Amps
3A
Capacitor Required
Included
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Double Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Condenser Fan
Voltage Compatibility
115/208-230V AC, 208-230V AC, 208-240V AC
Motor Mounting Position
Horizontal
Usable @ 208V
Usable at 208V
Weight
15 lb
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Conduit Box Position
F3
Rotation
CW/CCW
Mounting
Cradle Base
Number of Speeds
1
Motor Enclosure Type
Open Air Over
Mounting Position
Horizontal
Sub Application
Condenser Fan
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1
Ambient Temperature - Maximum
60 Degrees C
Bearing Type
Sleeve
Frame Material
Steel
Product Type
Condenser Fan Motor
Full Load Current @ 60 Hz
3.0 A
Compatible Brand
Hill Refrigeration
Shaft Design
Double Flat

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 3.0 A, 48Y Frame, OEM Replacement Brand Hill Refrigeration, Replacement For 5KCP39KG1369BS, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over
