Shop LEESON

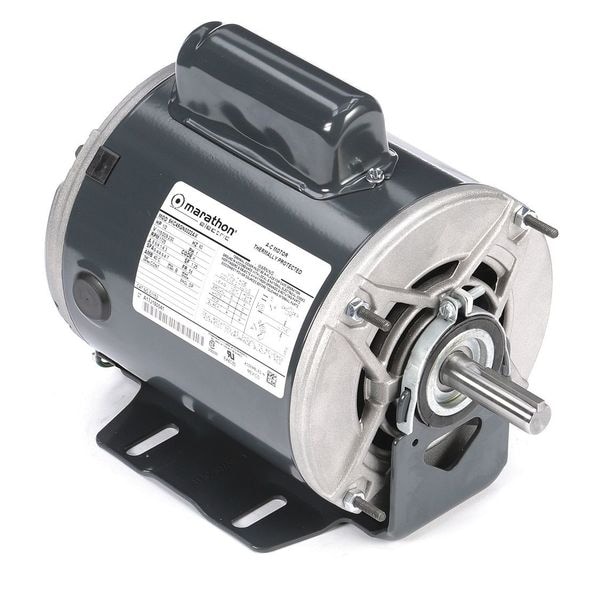

Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 56 Frame

  • Mfr # 5KC49GN0022X

  • Zoro # G7619455

product price:  $359.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cradle Base
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
115/208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5KC49GN0022X
Zoro #
G7619455
UPC #
-
Country of Origin
Multiple

Dimensions

Shaft Length
2 in
Manufacturers Warranty Length
1 yr
Shaft Dia.
5/8 in
Length Less Shaft
8 1/2 in
Overall Length
10 3/8 in
Frame Size
56
Shaft Diameter
5/8 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cradle Base
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
115/208-230V AC
Frame
56
Motor Thermal Protection
Auto
Motor Service Factor
1.25
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application
General Purpose
Nameplate RPM
1,725 RPM
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA Certified, UL Listed
Nominal Efficiency
52.5 %
Frame Material
Steel
Max. Ambient Temp.
40 Degrees C
Hz
60 Hz
Duty
Continuous
Ins. Class
B
Full Load Amps
8.6/4.3-4.1 A
Motor Bearings
Ball
RPM Group
1701-1800
Inverter Rated
Not Inverter Rated
Phase
Single
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
Weight
21 lb
Duty Cycle
Continuous
Capacitor Required
Yes
Inverter Rating
Not Inverter Rated
Manufacturers Warranty
1 yr
Motor Enclosure Type
Open Drip Proof
Product Type
General Purpose Motor
Mounting Position
All Angle
Nameplate Service Factor @ 60 Hz
1.25
Bearing Type
Ball
Full Load Current @ 60 Hz
8.6/4.3-4.1 A
Insulation Class
B
Shaft Design
Keyed
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Number of Speeds
1
Efficiency Rating
Standard Efficiency (IE1)
Application
General Purpose

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 8.6/4.3-4.1 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
