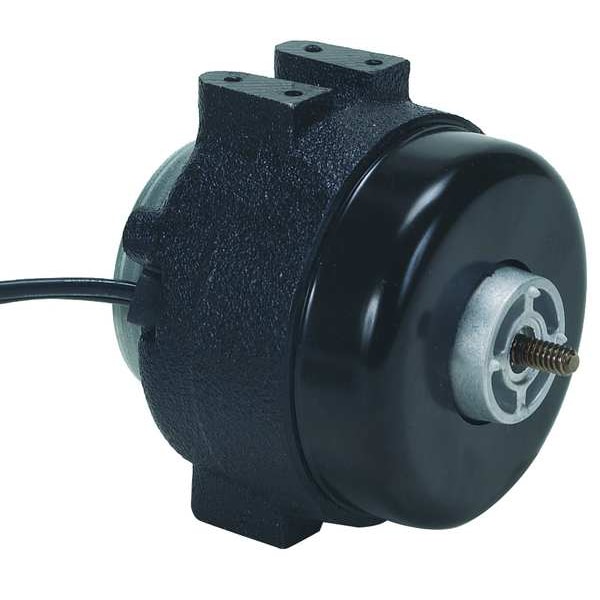

Unit Bearing Motor, 1/83 hp

  • Mfr # 4YFG2
  • Zoro # G1330655
product price:
$
30.79
/ea

Key Features

Motor Sub Application
Refrigerator/Freezer
Output Watts
9 W
HP
1/83
RPM Range
1,501-1,600
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4YFG2
Zoro #
G1330655
UPC #
190735338247
Country of Origin
Korea, Republic of

Dimensions

Length Less Shaft
2 5/8 in
Bolt Circle Dia.
2 13/16 in
Body Dia.
3 1/2 in
Shaft Dia.
1/4 in
Overall Length
3 1/8 in
Shaft Length
1/2 in
Body Diameter
3.5 in
Frame Size
Non-Standard
Cord Length
30 in
Bolt Circle Diameter
2 13/16 in
Shaft Diameter
1/4 in
Lead Length
30 in
Wire Rope Length
3 1/8 in
Length
3 1/8 in

Details

Motor Sub Application
Refrigerator/Freezer
Output Watts
9 W
HP
1/83
RPM Range
1,501-1,600
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC
Phase
Single
Voltage
115V AC
Motor Shaft Rotation
CWLE
Nameplate RPM
1,550
Frame
Non-Standard
Motor Thermal Protection
Auto
Hz
50/60 Hz
Max. Ambient Temp.
40 Degrees C
Ins. Class
A
Motor Application
HVAC/R
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Design
Shaded Pole
Motor Shaft Design
Threaded
Item
Unit Bearing Motor
Motor Frame Material
Cast Aluminum
Motor Mounting Type
Rear/Double Foot
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Bearings
Sleeve
Full Load Amps
0.62 A
Motor Service Factor
1
Frame Material
Aluminum
Finish
Black Electrostatic
Mounting Holes
3 Tapped
Includes
(4) #8-36 Screws, Fan Silencer, Speed Nut, Speed Washer
Drive Type
Direct Drive
Duty
Continuous
Number of Speeds
1
Capacitor Required
Capacitor Not Required
Flange Type
Ventilated
Insulation Class
A
Includes Fan
Fan Not Included
Nameplate Service Factor @ 60 Hz
1
Usable @ 200V
Not Usable at 200V
Wattage
9 W
Bearing Protection Type
Rain Shields
Ambient Temperature - Maximum
40 Degrees C
Product Type
Unit Bearing Motor
Motor Enclosure Type
Totally Enclosed Air-Over
Mounting Position
Horizontal/Vertical Shaft Up
Nominal Efficiency
25 %
Number of Shafts
1
Weight
1.01 kg
Sub Application
Refrigeration
Bearing Lubrication Type
Permanently Lubricated
Inverter Rating
Not Inverter Rated
Manufacturers Warranty
1 yr
Bearing Type
Sleeve
Shaft Design
Threaded
Standards
CSA (251080), UL(E37403)
Frequency
60/50 Hz
Adjustable Speed Compatibility
Not Adjustable Speed Compatible
Usable @ 208V
Not Usable at 208V
Duty Rating
Commercial, Residential
Full Load Current @ 60 Hz
0.62 A
Application
Condenser Fan, Evaporative Cooler, Fan/Blower, Oil Burner, Unit Heater

Description

Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/83 HP, Nameplate RPM 1,550, Voltage 115V AC, 0.62 A Full Load Amps, Non-Standard Frame, Output Watts 9 W, 60/50 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Double Foot, Motor Frame Material Cast Aluminum, Motor Mounting Position Horizontal or Vertical Shaft Up
