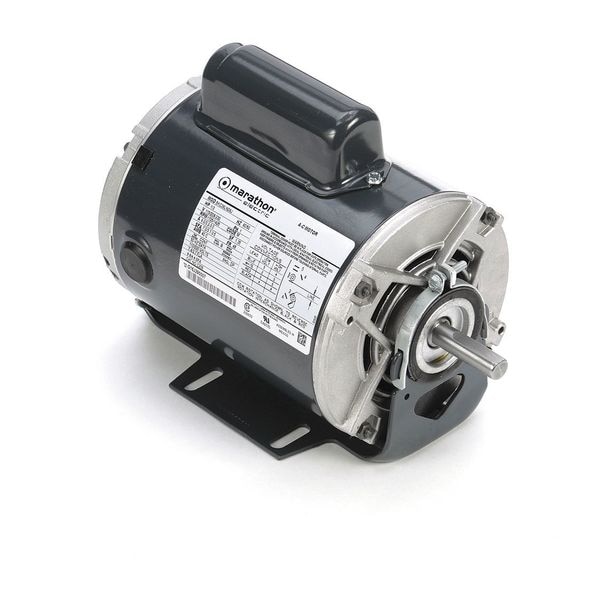

Capacitor-Start General Purpose Motor, 1/3 hp HP, 115/208-230V AC Voltage, 48 Frame

  • Mfr # 5KC36LN26
  • Zoro # G5538924
product price:
$
344.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cradle Base
HP
1/3 hp
RPM Range
1,701-1,800
Voltage
115V AC, 208V AC to 230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5KC36LN26
Zoro #
G5538924
UPC #
-
Country of Origin
Multiple
Item
General Purpose Motor
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cradle Base
HP
1/3 hp
RPM Range
1,701-1,800
Voltage
115V AC, 208V AC to 230V AC
Frame
48
Motor Thermal Protection
None
Motor Service Factor
1.35
No. of Speeds
1
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 208V AC to 230V AC
Motor Application
General Purpose
Nameplate RPM
1,725 RPM
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA Certified, UL Listed
Phase
Single
Motor Bearings
Ball
Frame Material
Steel
Nominal Efficiency
59.5 %
Inverter Rated
Not Inverter Rated
Full Load Amps
6.0/3.2-3.0 A
Max. Ambient Temp.
40 Degrees C
RPM Group
1701-1800
Duty
Continuous
Ins. Class
B
Hz
50/60 Hz
Weight
18 lb
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Capacitor Required
Yes
Full Load Amps @ 50Hz
7.4/3.7 A
Inverter Rating
Not Inverter Rated
Number of Speeds
1
Bearing Type
Ball
Frequency
60/50 Hz
Full Load Current @ 50 Hz
7.4/3.7 A
Nameplate Service Factor @ 60 Hz
1.35
Shaft Design
Flat
Full Load Current @ 60 Hz
6.0/3.2-3.0 A
Application
General Purpose
Insulation Class
B
Product Type
General Purpose Motor
Motor Enclosure Type
Open Drip Proof
Ambient Temperature - Maximum
40 Degrees C
Manufacturers Warranty
1 yr
Efficiency Rating
Standard Efficiency (IE1)

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.0/3.2-3.0 A, 48 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
