Shop LEESON

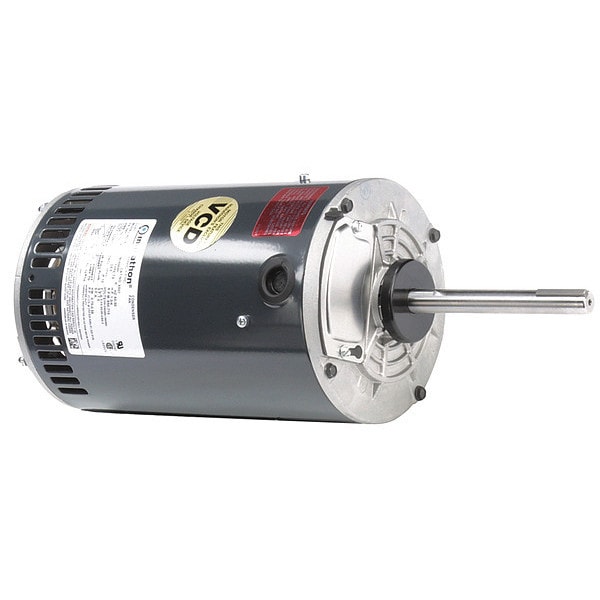

Condenser Fan Motor, 1 hp

  • Mfr # 056T8O5302
  • Zoro # G7343828
product price:
$
548.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
0-1,000
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056T8O5302
Zoro #
G7343828
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
5 in
Overall Length
17 1/16 in
Length Less Shaft
12 1/16 in
Body Dia.
6 1/2 in
Manufacturers Warranty Length
1 yr
Body Diameter
6.5 in
Frame Size
56Y
Shaft Diameter
5/8 in
Wire Rope Length
17 1/16 in
Length
17 1/16 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
0-1,000
No. of Speeds
1
Voltage
200V AC to 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Frame
56Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Band/Stud
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Thermal Protection
Auto
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
850
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 200V AC to 230V AC, 200V AC
Motor Service Factor
1
Capacitor Required
Capacitor Not Required
Features
(4) Locating Screws 90 Degrees Apart, 3 5/16 in From Outer Edge of Shaft Slinger, Voltage Change Device for Quick Voltage Changes
Full Load Amps
5.3-5.3/2.7 A
Nominal Efficiency
74.5 %
Standards
CSA Certified (LR2025), UL Recognized
Motor Bearings
Ball
Application
Condenser Fan
Motor Shaft Design
Keyed with Single Flat
Duty
Continuous
Hz
50/60 Hz
Ins. Class
H
Weight
46 lb
Full Load Amps @ 50Hz
5.3-5.3/2.7 A
Usable @ 200V
Not Usable at 200V
Output Watts
750 W
Removable Base
No
Motor Frame Material
Steel
Voltage @ 50Hz
200-230/460V AC
Usable @ 208V
Usable at 208V
Conduit Box Position
F1
HP @ 50Hz
1
Conduit Box Location
Exterior
RPM @ 50Hz
850
Service Factor @ 50Hz
1
Duty Cycle
Continuous
Nameplate Service Factor @ 60 Hz
1
Drive Type
Direct Drive
Mounting Position
Horizontal/Vertical Shaft Up
Shaft Design
Keyed
Ambient Temperature - Maximum
70 Degrees C
Nameplate Voltage @ 50 Hz
200-230/460V AC
Sub Application
Condenser Fan
Frame Material
Steel
Insulation Class
H
Full Load Current @ 60 Hz
5.3-5.3/2.7 A
Bearing Type
Ball
Product Type
Condenser Fan Motor
Motor Enclosure Type
Open Air Over
Nameplate RPM @ 50 Hz
850
Full Load Current @ 50 Hz
5.3-5.3/2.7 A
Nameplate Horsepower @ 50 Hz
1 hp
Nameplate Service Factor @ 50 Hz
1
Frequency
60/50 Hz
Wattage
750 W
Manufacturers Warranty
1 yr
Number of Speeds
1

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 5.3-5.3/2.7 A Full Load Amps, 56Y Frame, Output Watts 750 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class H, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band
