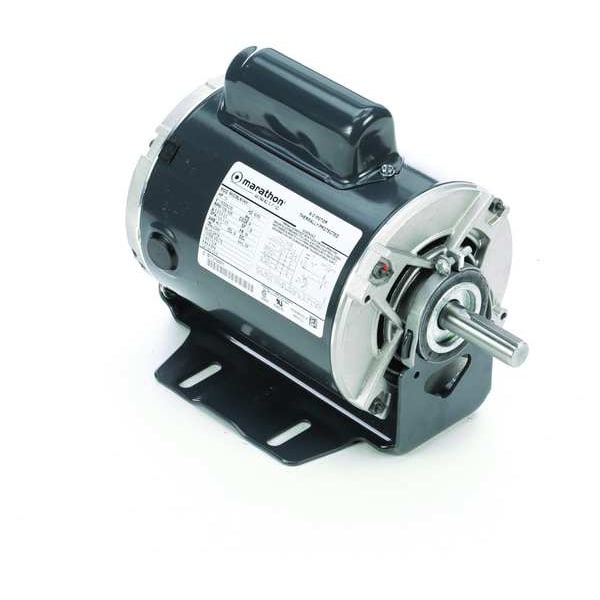

Capacitor-Start General Purpose Motor, 1/3 hp HP, 115/208-230V AC Voltage, 56 Frame

  • Mfr # 5KC36LN1X
  • Zoro # G7539594
product price:
$
246.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cradle Base
HP
1/3 hp
RPM Range
1,701-1,800
Voltage
115V AC, 208V AC to 230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5KC36LN1X
Zoro #
G7539594
UPC #
-
Country of Origin
Multiple

Dimensions

Overall Length
10 5/16 in
Shaft Dia.
5/8 in
Length Less Shaft
8 7/16 in
Manufacturers Warranty Length
1 yr
Shaft Length
1 7/8 in
Frame Size
56
Shaft Diameter
5/8 in
Wire Rope Length
10 5/16 in
Length
10 5/16 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cradle Base
HP
1/3 hp
RPM Range
1,701-1,800
Voltage
115V AC, 208V AC to 230V AC
Frame
56
Motor Thermal Protection
Auto
Motor Service Factor
1.35
No. of Speeds
1
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 208V AC to 230V AC
Motor Application
General Purpose
Nameplate RPM
1,725 RPM
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA Certified, UL Listed
Duty
Continuous
Max. Ambient Temp.
40 Degrees C
Ins. Class
B
RPM Group
1701-1800
Inverter Rated
Not Inverter Rated
Frame Material
Steel
Full Load Amps
6.0/3.2-3.0 A
Motor Bearings
Ball
Hz
50/60 Hz
Phase
Single
Nominal Efficiency
62 %
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Weight
18 lb
Usable @ 200V
Not Usable at 200V
Capacitor Required
Yes
Full Load Amps @ 50Hz
7.4/3.7 A
Inverter Rating
Not Inverter Rated
Product Type
General Purpose Motor
Motor Enclosure Type
Open Drip Proof
Shaft Design
Keyed
Manufacturers Warranty
1 yr
Insulation Class
B
Number of Speeds
1
Full Load Current @ 60 Hz
6.0/3.2-3.0 A
Efficiency Rating
Standard Efficiency (IE1)
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 50 Hz
7.4/3.7 A
Application
General Purpose
Frequency
60/50 Hz
Nameplate Service Factor @ 60 Hz
1.35
Bearing Type
Ball

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.0/3.2-3.0 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
