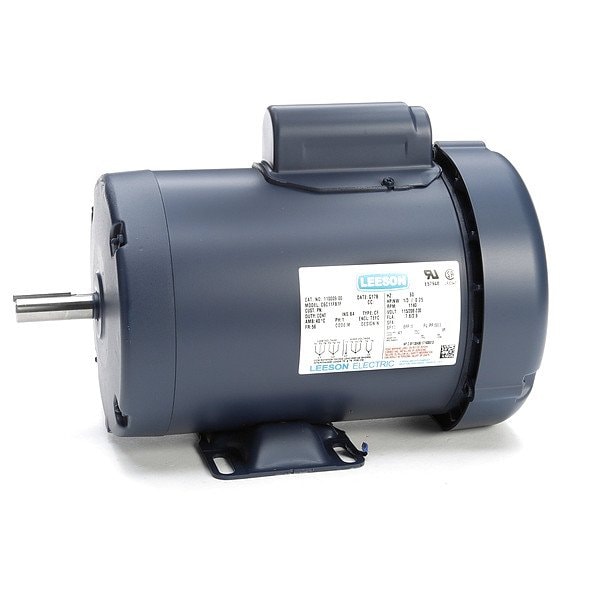

Capacitor-Start General Purpose Motor, 1/3 hp HP, 56 Frame, 115/230V AC Voltage
Mfr # 110009.00
Zoro # G309880478
product price:Â $457.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
1/3 hp
RPM Range
1,101-1,200
Voltage
115/230V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 110009.00
- Zoro #
- G309880478
- UPC #
- 691720007280
- Country of Origin
- United States
Dimensions
- Shaft Length
- 1 7/8 in
- Shaft Dia.
- 5/8 in
- Overall Length
- 12 1/2 in
- Frame Size
- 56
- Shaft Diameter
- 5/8 in
- Wire Rope Length
- 12 1/2 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 7.8/3.9-3.6 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CCWSE
Restrictions
This item has been restricted from sale in the following states:
CA
