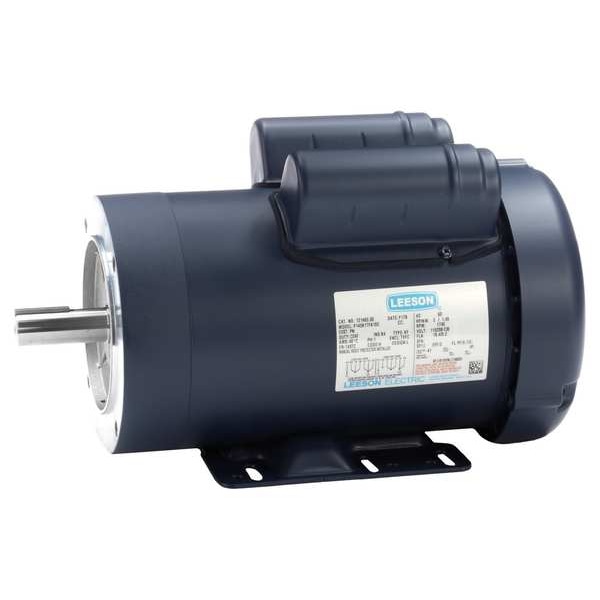

Capacitor-Start General Purpose Motor, 2 HP, 145TC Frame, 115/208-230V AC Voltage
Mfr # 121465.00
Zoro # G602014952
product price:Â $872.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Mounting Type
Face/Base
HP
2
RPM Range
1,701-1,800
Voltage
115/208-230V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 121465.00
- Zoro #
- G602014952
- UPC #
- 691720017029
- Country of Origin
- United States
Dimensions
- Lead Length
- 6 in
- Body Dia.
- 7.7 in
- Length Less Shaft
- 11 5/8 in
- Shaft Length
- 2 1/4 in
- Shaft Dia.
- 7/8 in
- Bolt Circle Dia.
- 5 5/8 in
- Overall Length
- 13 15/16 in
- Manufacturers Warranty Length
- 18 mo
- Height
- 8 3/8 in
- Frame Size
- 145TC
- Bolt Circle Diameter
- 5 5/8 in
- Body Diameter
- 7.7 in
- Shaft Diameter
- 7/8 in
- Wire Rope Length
- 13 15/16 in
Description
General Purpose Motor, Bearing Protection Double Shield, Body Dia. 7.7 in, Bolt Circle Dia. 5 5/8 in, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Finish Enamel, Frame 145TC, Hz 60 Hz, Full Load Amps 18.4/9.2, Height 8 3/8 in, HP 2, Includes Key, Ins. Class B, Inverter Rated Not Inverter Rated, Inverter Rating No, Lead Length 6 in, Length Less Shaft 11 5/8 in, Manufacturers Warranty Length 18 mo, Max. Ambient Temp. 104 Degrees F
