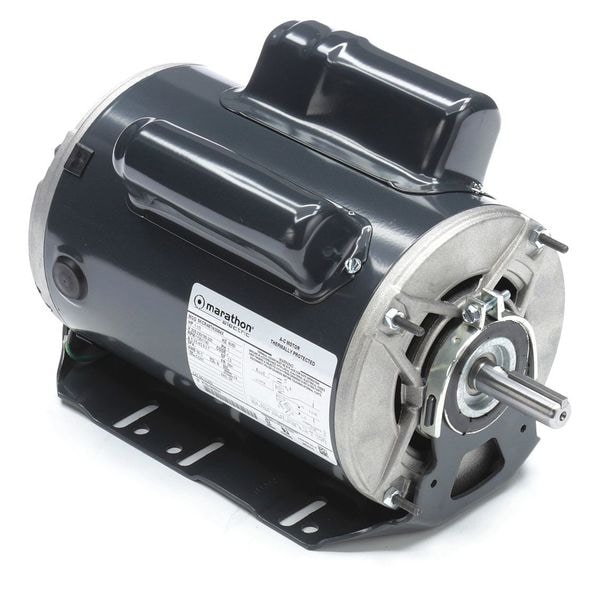

Capacitor-Start/Run General Purpose Motor, 1 hp, 1/3 hp HP, 208-230/190-220V AC Voltage, 56H Frame

  • Mfr # 5KCR48TN3084X
  • Zoro # G7477075
product price:
$
653.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cradle Base
HP
1 hp, 1/3 hp
RPM Range
1,701-1,800
Voltage
208V AC to 230V AC, 190V AC to 220V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5KCR48TN3084X
Zoro #
G7477075
UPC #
-
Country of Origin
Multiple
Item
General Purpose Motor
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cradle Base
HP
1 hp, 1/3 hp
RPM Range
1,701-1,800
Voltage
208V AC to 230V AC, 190V AC to 220V AC
Frame
56H
Motor Thermal Protection
Auto
Motor Service Factor
1
No. of Speeds
2
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Motor Application
General Purpose
Motor Sub Application
Direct Drive Fan/Blower
Nameplate RPM
1,725/1,140 RPM
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start/Run
Standards
CSA Certified, UL Listed
Frame Material
Steel
Hz
50/60 Hz
Nominal Efficiency
74 %
Full Load Amps
5.4/3.7 A
RPM Group
1701-1800
Motor Bearings
Ball
Max. Ambient Temp.
50 Degrees C
Duty
Continuous
Ins. Class
B
Inverter Rated
Not Inverter Rated
Phase
Single
Usable @ 208V
Usable at 208V
Weight
36 lb
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Capacitor Required
Yes
Full Load Amps @ 50Hz
5.5/3.8 A
Inverter Rating
Not Inverter Rated
Ambient Temperature - Maximum
50 Degrees C
Manufacturers Warranty
1 yr
Nameplate Service Factor @ 60 Hz
1
Sub Application
Direct Drive Fan/Blower
Insulation Class
B
Frequency
60/50 Hz
Application
General Purpose
Full Load Current @ 50 Hz
5.5/3.8 A
Product Type
General Purpose Motor
Efficiency Rating
Standard Efficiency (IE1)
Bearing Type
Ball
Full Load Current @ 60 Hz
5.4/3.7 A
Shaft Design
Keyed
Motor Enclosure Type
Open Drip Proof

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp, 1/3 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 208-230/190-220V AC, Full Load Amps 5.4/3.7 A, 56H Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Motor Service Factor 1, Max. Ambient Temp. 50 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW
