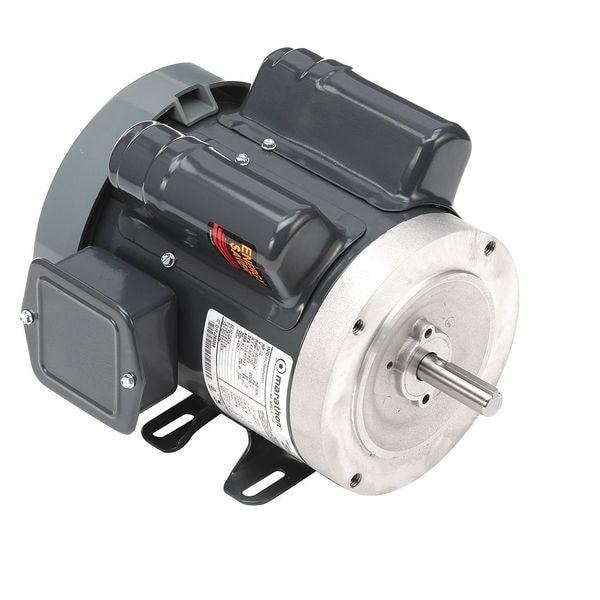

Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 100-120/200-240V AC Voltage, 56C Frame

  • Mfr # 5KCR46MN0055Y

  • Zoro # G2922787

product price:
$
599.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
100-120/200-240V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5KCR46MN0055Y
Zoro #
G2922787
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Length Less Shaft
9 15/16 in
Overall Length
11 13/16 in
Wire Rope Length
11 13/16 in
Frame Size
56C
Shaft Diameter
5/8 in
Length
11 13/16 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
100-120/200-240V AC
Frame
56C
Motor Thermal Protection
Manual
Motor Service Factor
1.35
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Application
General Purpose
Nameplate RPM
1,725 RPM
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start/Run
Standards
CSA Certified, UL Listed
Frame Material
Steel
Max. Ambient Temp.
40 Degrees C
RPM Group
1701-1800
Nominal Efficiency
70.2 %
Full Load Amps
5.6/2.8 A
Hz
60/50 Hz
Phase
Single
Motor Bearings
Ball
Duty
Continuous
Ins. Class
B
Footnotes
ES,1,19,24,68
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Weight
29 lb
Usable @ 200V
Usable at 200V
Full Load Amps @ 50Hz
5.0/2.5 A
Full Load Current @ 60 Hz
5.6/2.8 A
Bearing Type
Ball
Motor Enclosure Type
Totally Enclosed Fan Cooled
Product Type
General Purpose Motor
Nameplate Service Factor @ 60 Hz
1.35
Manufacturers Warranty
1 yr
Efficiency Rating
Standard Efficiency (IE1)
Insulation Class
B
Shaft Design
Keyed
Number of Speeds
1
Frequency
60/50 Hz
Ambient Temperature - Maximum
40 Degrees C
Application
General Purpose
Full Load Current @ 50 Hz
5.0/2.5 A

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 100-120/200-240V AC, Full Load Amps 5.6/2.8 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Usable at 200V, Hz 60/50 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
