Shop DAYTON

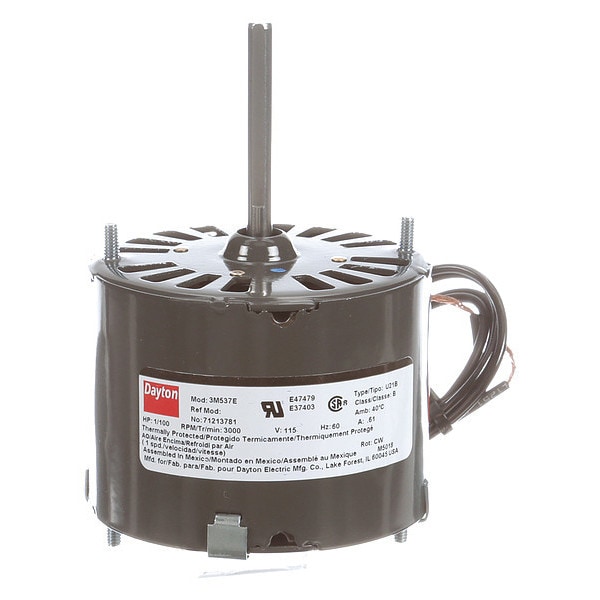

HVAC Motor, 1/100 HP, 3000 rpm, 115V, 3.3

  • Mfr # 71213781M

  • Zoro # G0652337

product price:
$
60.49
/ea

Key Features

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/100
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
71213781M
Zoro #
G0652337
UPC #
-
Country of Origin
Mexico

Dimensions

Cord Length
12 in
Shaft Dia.
1/4 in
Length Less Shaft
2 3/4 in
Shaft Length
2 1/4 in
Body Dia.
3 5/16 in
Body Diameter
3.3 in
Shaft Diameter
1/4 in
Overall Length
4 3/4 in
Frame Size
3.3
Wire Rope Length
4 3/4 in
Length
4 3/4 in

Details

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/100
RPM Range
1,801-3,000
Item
HVAC Motor
Motor Thermal Protection
Auto
Stud/Base Mtg. Pattern
2-7/8 in
No. of Speeds
1
Standards
CSA Certified, UL Recognized
Phase
Single
Max. Ambient Temp.
40 Degrees C
Frame
3.3
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Design
Shaded Pole
Duty
Continuous
Mounting Stud Location
2/Both Ends
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Motor Shaft Rotation
CWSE
Motor Application
HVAC/R
Motor Bearings
Sleeve
Motor Shaft Design
Flat
Mounting Pattern
2-7/8
Number of Shafts
1
Motor Service Factor
1
Full Load Amps
0.6 A
Motor Mounting Type
Ring/Stud
Hz
60 Hz
Motor Sub Application
Direct Drive Fan/Blower
Ins. Class
B
Capacitor Required
Capacitor Not Required
Duty Cycle
Continuous
Mounting Stud Pattern
2 7/8 in
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
All Angle
Usable @ 208V
Not Usable at 208V
Type
OEM Replacement
Mounting
Stud
Drive Type
Direct Drive
Frequency
60 Hz
Motor Enclosure Type
Open Air Over
Full Load Current @ 60 Hz
0.60 A
Sub Application
General Purpose
Shaft Design
Flat
Insulation Class
B
Frame Material
Steel
Bearing Type
Sleeve
Nameplate Service Factor @ 60 Hz
1
Wattage
7.4 W
Ambient Temperature - Maximum
40 Degrees C

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/100 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 115V AC, 0.60 A Full Load Amps, 3.3 Frame, Output Watts 7.4 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
