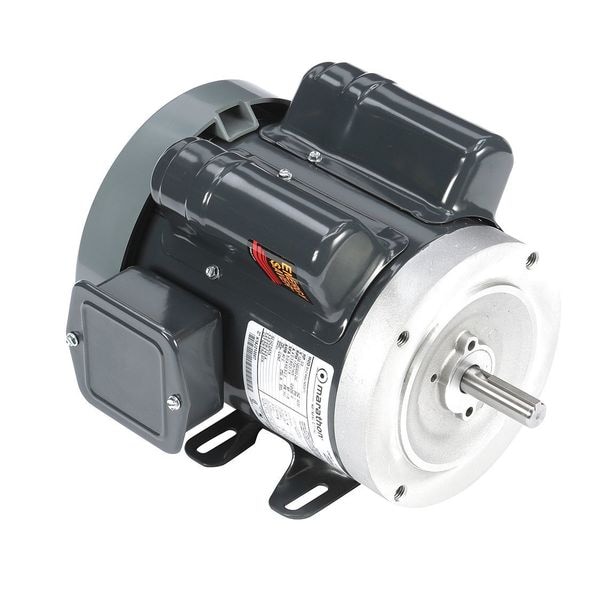

Capacitor-Start/Run General Purpose Motor, 1/3 hp HP, 56C Frame, 100-120/200-240V AC Voltage
Mfr # 5KCR46JN0087Y
Zoro # G1750454
product price: $546.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Capacitor-Start/Run
Phase
Single
HP
1/3 hp
RPM Range
1,701-1,800
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
5KCR46JN0087Y
Zoro #
G1750454
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Length Less Shaft
9 15/16 in
Overall Length
11 13/16 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 100-120/200-240V AC, Full Load Amps 3.8/1.9 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Usable at 200V, Hz 60/50 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
