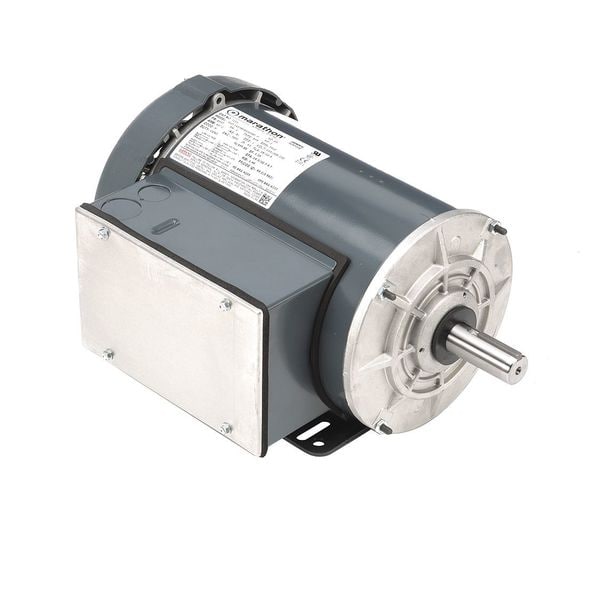

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/208-230V AC Voltage, 145T Frame

  • Mfr # 145TBFR5303

  • Zoro # G5534076

product price:  $541.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
2 hp
RPM Range
3,001-3,600
Voltage
115/208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
145TBFR5303
Zoro #
G5534076
UPC #
-
Country of Origin
Multiple

Dimensions

Shaft Dia.
7/8 in
Overall Length
13 7/16 in
Length Less Shaft
11 1/16 in
Manufacturers Warranty Length
1 yr
Shaft Length
2 1/4 in
Frame Size
145T
Shaft Diameter
7/8 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
2 hp
RPM Range
3,001-3,600
Voltage
115/208-230V AC
Frame
145T
Motor Thermal Protection
None
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application
General Purpose
Nameplate RPM
3,510 RPM
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start/Run
Standards
CE, CSA, UL Recognized
Phase
Single
Motor Bearings
Ball
Duty
Continuous
Nominal Efficiency
80 %
Max. Ambient Temp.
40 Degrees C
Ins. Class
B
Hz
60 Hz
Frame Material
Steel
Inverter Rated
Not Inverter Rated
RPM Group
3001-3600
Full Load Amps
18.0/10.0-9.0 A
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
Weight
39 lb
Capacitor Required
No
Inverter Rating
Not Inverter Rated
Shaft Design
Keyed
Efficiency Rating
Standard Efficiency (IE1)
Nameplate Service Factor @ 60 Hz
1.15
Manufacturers Warranty
1 yr
Bearing Type
Ball
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Application
General Purpose
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frequency
60 Hz
Full Load Current @ 60 Hz
18.0/10.0-9.0 A
Product Type
General Purpose Motor

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 3,510 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 18.0/10.0-9.0 A, 145T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
