Shop DAYTON

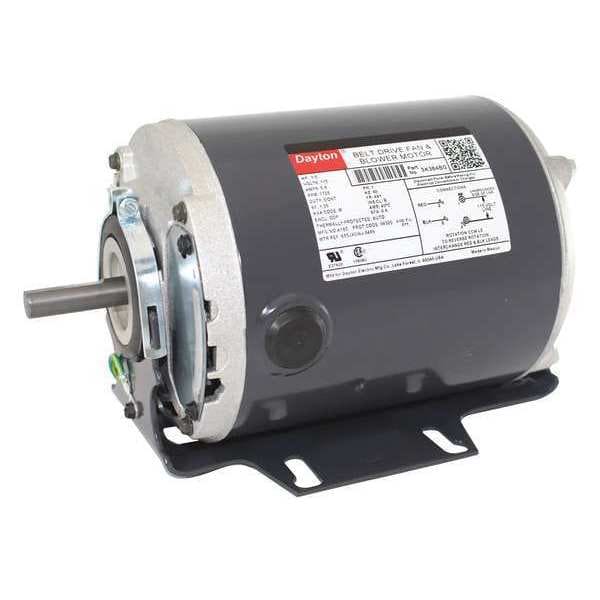

Split-Phase Belt Drive Motor, 1/3 HP, 48 Frame, 115V AC Voltage, 1,725 Nameplate RPM

  • Mfr # 3K384
  • Zoro # G1946926
product price:
$
213.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/3
No. of Speeds
1
RPM Range
1,701-1,800
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3K384
Zoro #
G1946926
UPC #
190735290231
Country of Origin
Multiple

Dimensions

Shaft Dia.
1/2 in
Resilient Ring Dia.
2 1/2 in
Length Less Shaft
8 3/8 in
Overall Length
9 7/8 in
Body Dia.
5 5/8 in
Shaft Length
1 1/2 in
Body Diameter
5.6 in
Resilient Ring Diameter
2 1/2 in
Frame Size
48
Shaft Diameter
1/2 in

Details

Item
Belt Drive Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/3
No. of Speeds
1
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
115V AC
Frame
48
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1.35
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Full Load Amps
5.8 A
Ins. Class
B
Hz
60 Hz
Motor Mounting Position
All Angle
Ring to Ring Center
7 15/16 in
Max. Ambient Temp.
104 Degrees F
Motor Frame Material
Rolled Steel
Frame Material
Steel
Duty
Continuous
Footnotes
34 - Leads exit shaft end
Includes
Shaft is on lead end of the motor.
Motor Shaft Rotation
CW/CCW
Motor Shaft Design
Flat
Motor Bearings
Ball
Standards
UL Recognition (E37403) and CSA Certification
Duty Cycle
Continuous
Nameplate Service Factor @ 60 Hz
1.35
Shaft Design
Flat
Motor Enclosure Type
Open Drip Proof
Full Load Current @ 60 Hz
5.8 A
Mounting Position
All Angle
Duty Rating
Commercial
Insulation Class
B
Number of Speeds
1
Application
Fan/Blower
Bearing Type
Ball
Product Type
Fan and Blower Motor
Drive Type
Belt Drive
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C

Description

The DAYTON - 3K384 is a Belt Drive Motor, an essential power transmission device used in various industrial applications. This motor transfers rotational motion from one shaft to another using a belt, offering smooth and controlled power delivery. It's designed for efficiency and versatility, making it a crucial component in many machinery systems across different industries.
Key features of the DAYTON - 3K384 include:
• Horsepower (HP) rating of 1/3 indicating high capacity output
• Operates on Voltage: 115V AC with compatibility range including 115/208-230V AC, 115/230V AC, 120/240V AC, and more
• Single phase power supply suitable for residential or light commercial use
• Open Dripproof Motor Enclosure Design for better cooling but less protection against dust and moisture
• Cradle Base as the type of motor mounting structure
• All Angle Motor Mounting Position providing versatile usage options in various industry applications
• Ball type Motor Bearings enhancing operational efficiency
• Auto feature for thermal protection preventing overheating by automatic shutdown
• Maximum Ambient Temperature of up to 104 Degrees F ensuring efficient operation under diverse conditions
• Continuous Duty Cycle allowing non-stop operation for optimal efficiency in high-demand settings
• Compliance with UL Recognition (E37403) and CSA Certification standards ensuring quality, safety, efficiency
