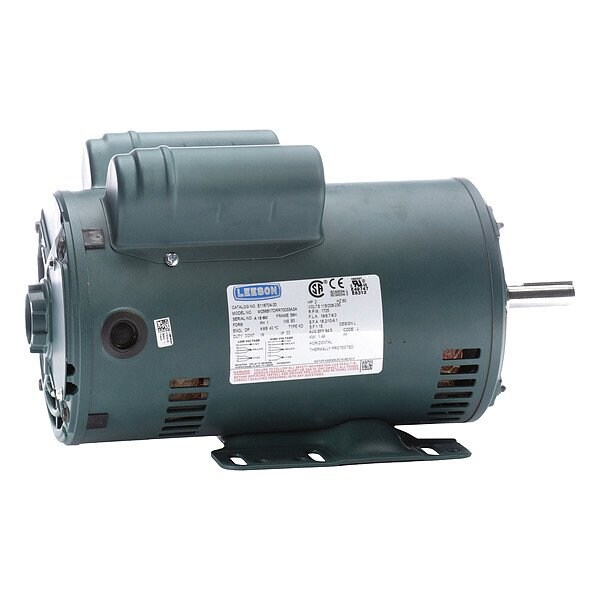

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 56H Frame, 115/208-230V AC Voltage
Mfr # E116704.00
Zoro # G611930625
product price: $740.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Rigid Base
HP
2 hp
RPM Range
1725
Voltage
115/208-230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
E116704.00
Zoro #
G611930625
UPC #
691720990933
Country of Origin
Mexico
Dimensions
Overall Length
14 1/2 in
Length Less Shaft
12 5/8 in
Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 16.0/8.7-8.0 A, 56H Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW
