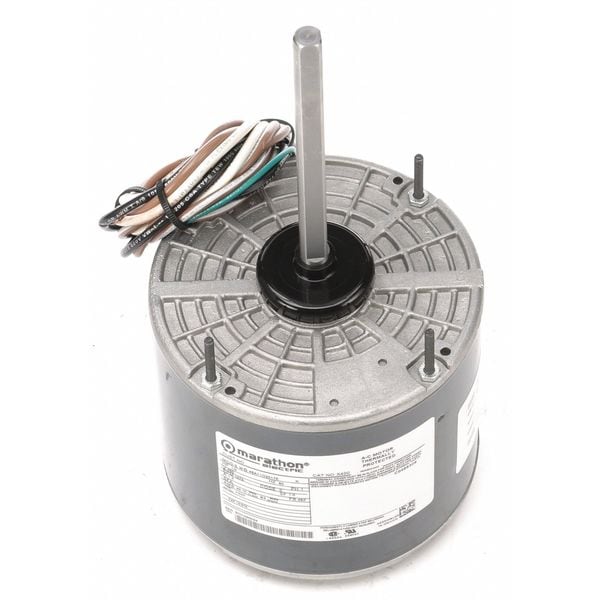

Condenser Fan Motor, 1/2 hp

  • Mfr # 048A11O2017
  • Zoro # G2034868
product price:
$
225.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
1,001-1,100
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
048A11O2017
Zoro #
G2034868
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
6 in
Shaft Dia.
1/2 in
Stud Size
#8-32
Length Less Shaft
5 15/16 in
Body Dia.
5 11/16 in
Lead Length
30 in
Bolt Circle Dia.
1 1/8 in
Overall Length
11 15/16 in
Shaft Diameter
1/2 in
Frame Size
48Z
Body Diameter
5.7 in
Mounting Stud Thread Size
#8-32
Bolt Circle Diameter
1 1/8 in
Wire Rope Length
11 15/16 in
Length
11 15/16 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
460V AC
Motor Shaft Rotation
CW/CCW
Frame
48Z
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Stud
Hz
60 Hz
Nominal Efficiency
62 %
Ins. Class
B
Nameplate RPM
1,075
Motor Application
HVAC/R
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Service Factor
1
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 220V AC to 230V AC, 460V AC, 220V AC, 460V AC, 230V AC, 460V AC, 796V AC, 230V AC, 460V AC, 440V AC to 460V AC, 460V AC, 796V AC, 460V AC
Motor Shaft Design
Flat
Features
Shaft Slinger, Thru Bolt, Weather Resistant Reversing Plug
Stud Quantity
4
Item
Condenser Fan Motor
Full Load Amps
1.4 A
Capacitor Required
Capacitor Included
Application
Condenser Fan
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Motor Thermal Protection
Auto
Motor Bearings
Ball
Motor Sub Application
Condenser Fan
Mounting Stud Pattern
3 5/8 in
Standards
CSA Certified, UL Recognized
Removable Base
No
Weight
16 lb
Conduit Box Position
F1
Duty Cycle
Continuous
Motor Frame Material
Steel
Conduit Box Location
Exterior
Extended Thru-Bolts
Yes
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Output Watts
370 W
Mounting Position
Horizontal/Vertical Shaft Up
Frequency
60 Hz
Shaft Design
Flat
Wattage
370 W
Nameplate Service Factor @ 60 Hz
1
Product Type
Condenser Fan Motor
Insulation Class
B
Sub Application
Condenser Fan
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Air Over
Drive Type
Direct Drive
Full Load Current @ 60 Hz
1.4 A
Bearing Type
Ball
Number of Speeds
1

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 460V AC, 1.4 A Full Load Amps, 48Z Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
