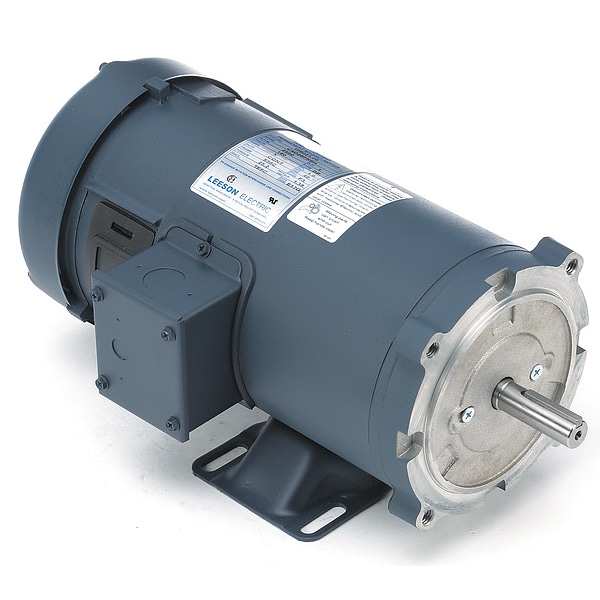

DC Permanent Magnet Motor, 5.0A, 180VDC
Mfr # 108021.00
Zoro # G4608628
product price: $554.99
/ea
Free Shipping & Returns
Key Features
HP
1
Voltage
180V DC
Nameplate RPM
2,500
Shaft Dia.
5/8 in
Frame
56C
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
108021.00
Zoro #
G4608628
UPC #
691720006665
Country of Origin
United States
Dimensions
Shaft Dia.
5/8 in
Overall Length
13 13/16 in
Shaft Length
1 7/8 in
Body Dia.
5 5/8 in
Length Less Shaft
11 7/8 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5 15/16 in
Description
DC Permanent Magnet Motor, Motor Design Permanent Magnet DC, 1 HP, Nameplate RPM 2,500, Voltage 180V DC, 5.0 A Full Load Amps, 56C Frame, Full Load Torque 25.2 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Removable Base Yes, Shaft Dia. 5/8 in, Motor Frame Material Steel, Motor Bearings Ball
Restrictions
Hazardous material
