  6. DC Washdown Motor, 1/2 HP, 13-7/8 in. L

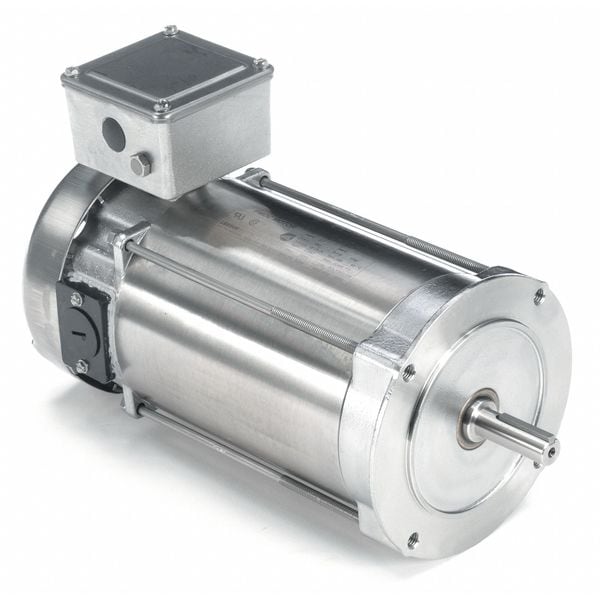

Leeson DC Washdown Motor, 1/2 HP, 13-7/8 in. L 109083.00 - main

DC Washdown Motor, 1/2 HP, 13-7/8 in. L

  • Mfr # 109083.00

  • Zoro # G4447917

product price:  $1,209.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Magnet DC
Phase
Single
RPM Range
1,701-1,800
Voltage
180V DC
Frame
56C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
109083.00
Zoro #
G4447917
UPC #
691720343081
Country of Origin
United States

Dimensions

Body Dia.
6.5 in
Overall Length
13 7/8 in
Shaft Length
2 1/16 in
Length Less Shaft
11 15/16 in
Shaft Dia.
5/8 in
Bolt Circle Dia.
5 7/8 in
Manufacturers Warranty Length
1 yr

Details

Item
DC Washdown Motor
Motor Design
Permanent Magnet DC
Phase
Single
HP
1/2
RPM Range
1,701-1,800
Voltage
180V DC
Frame
56C
Motor Frame Material
Stainless Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Max. Ambient Temp.
40 Degrees C
Motor Application
Washdown
Ins. Class
F
Standards
BISSC Approved, CSA Certified, UL Recognized
Full Load Amps
2.7 A
Bearings
Ball
Features
Stainless Steel Fan Guards, Conduit Box Cover, Interior Surfaces Protected By Enamel/Polyester Coating
Voltage Compatibility
180V DC
Brush Type
Carbon
Motor Mounting Type
Face
Full Load Torque
18.0 in-lb
RPM Group
1701-1800
Nameplate RPM
1,750
Rotation
CW/CCW
Shaft Material
Stainless Steel
Motor Shaft Design
Keyed
Motor Shaft Rotation
CCW, CW
Motor Bearings
Ball
Motor Service Factor
1
Nominal Efficiency
73.7 %
Weight
46 lb
Duty Cycle
Continuous
Usable @ 208V
No
No. of Speeds
1
Conduit Box Location
Exterior
Usable @ 200V
No
Conduit Box Position
F3
Series
Washguard

Description

DC Motor,1/2 HP,1750,56C,180V
