  6. DC Washdown Motor, 7.5A, 90VDC, 15-3/8 in L

This item is Discontinued.

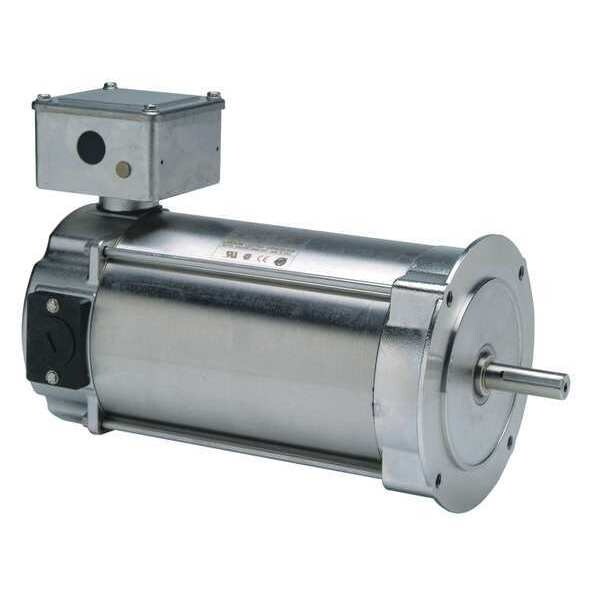

Leeson DC Washdown Motor, 7.5A, 90VDC, 15-3/8 in L 109085.00

DC Washdown Motor, 7.5A, 90VDC, 15-3/8 in L (Discontinued)

  • Mfr # 109085.00
  • Zoro # G4447908
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
109085.00
Zoro #
G4447908
UPC #
691720343104
Country of Origin
United States

Dimensions

Shaft Dia.
5/8"
Overall Length
15-3/8"
Body Dia.
6-1/2"
Length Less Shaft
13-7/16"
Shaft Length
1-7/8"

Details

Item
DC Washdown Motor
Motor Design
DC Permanent Magnet
HP
3/4
RPM Range
1701-1800
Voltage
90VDC
Frame
56c
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Bearings
Ball
Motor Application
Washdown
RPM Group
1701-1800
Full Load Amps
7.5
Features
Stainless Steel Fan Guards, Conduit Box Cover, Interior Surfaces Protected By Enamel/Polyester Coating
Max. Ambient Temp.
40 Degrees C
Full Load Torque
27.0 in.-lb.
Rotation
CW/CCW
Nameplate RPM
1750
Voltage Compatibility
90VDC
Motor Mounting Type
Face
Standards
UL (E47479), CSA (LR2025)
Brush Type
Carbon
Ins. Class
F

Description

DC Washdown Motor, Motor Design DC Permanent Magnet, 3/4 HP, Nameplate RPM 1750, Voltage 90V DC, 7.5 Full Load Amps, 56C Frame, Full Load Torque 27.0 in-lb, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face, Shaft Dia. 5/8 in, Shaft Length 1 7/8 in, Brush Type Carbon, Overall Length 15 3/8 in, Length Less Shaft 13 7/16 in
