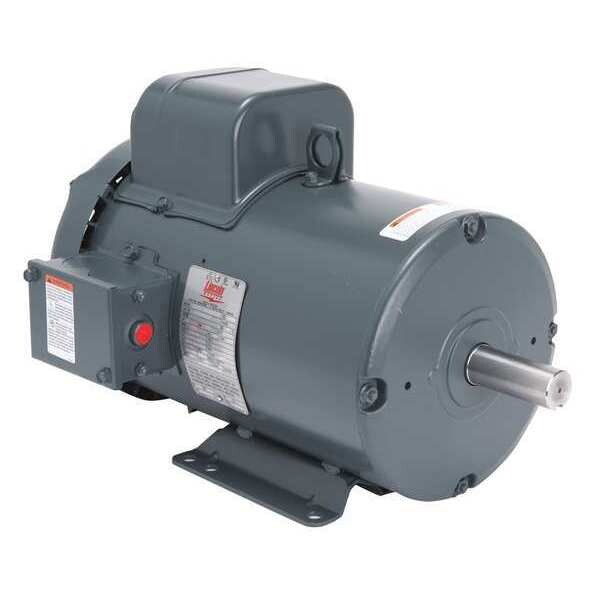

Extra High Torque Farm Duty Motor, Capacitor-Start/Run, 5 HP, 230, 1755 Nameplate RPM, 184 Frame (Discontinued)
- Mfr # LM24802
- Zoro # G4608311
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
LM24802
Zoro #
G4608311
UPC #
691720981511
Country of Origin
Unknown
Dimensions
Length Less Shaft
14 11/16 in
Overall Length
17 7/16 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
1 yr
Description
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 5 HP, Nameplate RPM 1,755, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 23.8-21.8 A, 184T Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
