  6. Farm Duty Motor, Capacitor-Start, 1 HP, 230/460V AC, 850 Nameplate RPM, 56C Frame
No Product Image Available
Shop LEESON

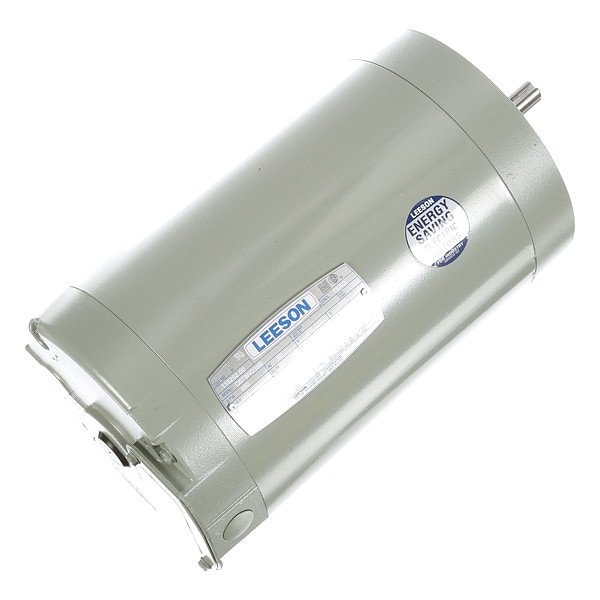

Farm Duty Motor, Capacitor-Start, 1 HP, 230/460V AC, 850 Nameplate RPM, 56C Frame

  • Mfr # 116202.00

  • Zoro # G511931067

product price:  $824.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Phase
Three
HP
1
RPM Range
0-1,000
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
116202.00
Zoro #
G511931067
UPC #
691720292105
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Length Less Shaft
11 in
Bolt Circle Dia.
5 11/16 in
Overall Length
12 7/8 in
Shaft Length
1 7/8 in

Details

Item
Farm Duty Motor
Motor Design
Capacitor-Start
Phase
Three
HP
1
RPM Range
0-1,000
Voltage
230/460V AC
Frame
56C
Motor Service Factor
1
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Air-Over
Nameplate RPM
850
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Round Base
Motor Shaft Design
Keyed
Motor Sub Application
General Purpose
Motor Shaft Rotation
Reversible
Standards
CSA Certified, UL Listed
Usable @ 208V
Yes
Weight
44 lb
Ins. Class
F
Voltage Compatibility
230V AC, 460V AC
Item - Farm Duty Motors
General Purpose Farm Duty Motor
Finish
Powder Coated
No. of Speeds
1
Motor Bearings
Ball
Full Load Amps
5/2.5 A
Extended Thru-Bolts
No
Usable @ 200V
No
Max. Ambient Temp.
104 Degrees F
Hz
60 Hz
Duty Cycle
Continuous
Capacitor Required
No
Nominal Efficiency
72 %

Description

Farm Duty Motor, Three Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5/2.5 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type C-Face
