  11. Feather Picker Motor, 3-Phase, 2 HP, 230/460V AC, 1,175 Nameplate RPM, 184TZ Frame

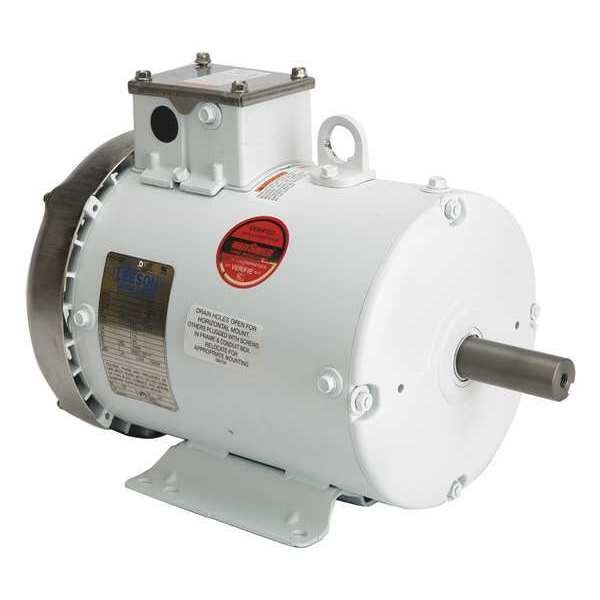

Leeson Feather Picker Motor, 3-Phase, 2 HP, 230/460V AC, 1,175 Nameplate RPM, 184TZ Frame 132246.00 - main

Feather Picker Motor, 3-Phase, 2 HP, 230/460V AC, 1,175 Nameplate RPM, 184TZ Frame

  • Mfr # 132246.00

  • Zoro # G4608880

product price: $1,073.64
/ea
Free Shipping & Returns

Key Features

Motor Design
3-Phase
Phase
Three
HP
2
RPM Range
1,101-1,200
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
132246.00
Zoro #
G4608880
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
14 15/16 in
Shaft Dia.
28 mm
Length Less Shaft
12 1/8 in
Shaft Length
2 13/16 in
Manufacturers Warranty Length
1 yr

Details

Item
Feather Picker Motor
Motor Design
3-Phase
Phase
Three
HP
2
RPM Range
1,101-1,200
Voltage
230/460V AC
Frame
184TZ
Motor Service Factor
1.5
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1,175
Motor Application
Farm Duty
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Shaft Design
Keyed
Motor Sub Application
Hatchery
Motor Shaft Rotation
CW/CCW
Standards
CSA (LR2025), UL (E49747)
Duty
Continuous
Frame Material
Rolled steel
Item - Farm Duty Motors
Feather Picker Motor
Full Load Amps
6.4/3.2 A
Hz
60 Hz
Ins. Class
F
Includes
Gasketed Conduit Box, Shaft Slinger
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Bearings
Ball
Nominal Efficiency
88.5 %
Usable @ 208V
No
Max. Ambient Temp.
40 Degrees C
Duty Cycle
Continuous
No. of Speeds
1
Usable @ 200V
No
Weight
85 lb
Application
Washdown Feather Picker Motor
Inverter Rated
No

Description

Farm Duty Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,175 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 6.4/3.2 A, 184TZ Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.5, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
