Shop LEESON

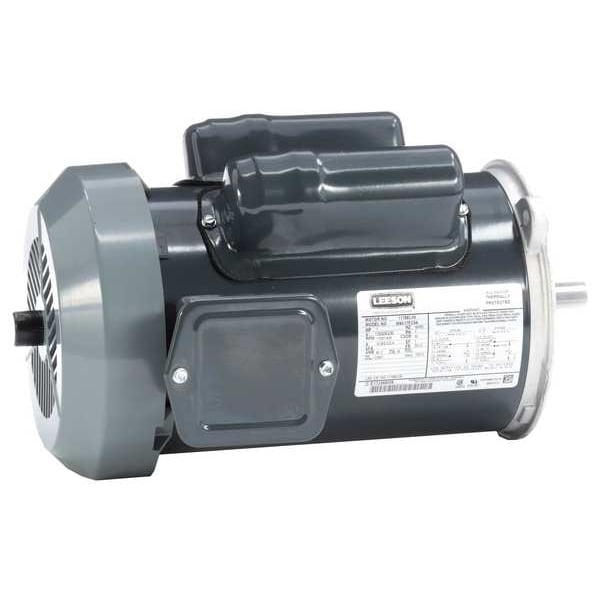

Auger Duty Motor, 1 HP, 115/230V AC, 1,800 Nameplate RPM, 56YZ Frame

  • Mfr # 117883.00

  • Zoro # G400722837

product price:
$
946.99
/ea
Free Shipping & Returns

Key Features

Phase
Single
HP
1 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56YZ
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
117883.00
Zoro #
G400722837
UPC #
-
Country of Origin
Mexico
Item
Auger Drive Motor
Phase
Single
HP
1 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56YZ
Motor Service Factor
1
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan Cooled
Nameplate RPM
1,800 RPM
Motor Application
Agriculture
Motor Mounting Type
C-Face
Motor Sub Application
Auger
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Usable @ 208V
Not Usable at 208V
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Hz
60 Hz
Item - Farm Duty Motors
Auger Motor
Full Load Amps
10.8/6.0-5.4 A
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Motor Design
Capacitor-Start/Run
Ins. Class
B
Nominal Efficiency
77.4 %

Description

Auger Drive Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 10.8/6.0-5.4 A, 56YZ Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
