Shop LEESON

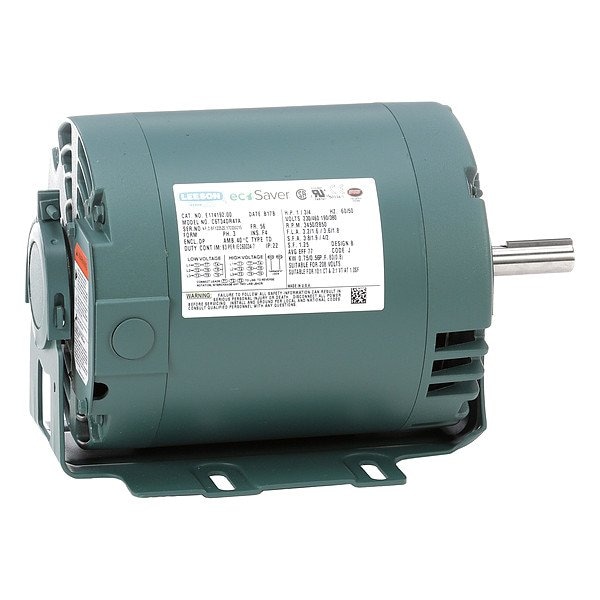

General Purpose Motor, 56, Rigid Base

  • Mfr # E114192.00

  • Zoro # G812190415

product price:  $492.99
/ea
Free Shipping & Returns

Key Features

HP
1
Nameplate RPM
3,450
Voltage
230/460V
Frame
56
Shaft Dia.
5/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
E114192.00
Zoro #
G812190415
UPC #
691720103647
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Length Less Shaft
8 15/16 in
Overall Length
10 13/16 in
Frame Size
56
Shaft Diameter
5/8 in
Wire Rope Length
10 13/16 in

Details

HP
1
Nameplate RPM
3,450
Voltage
230/460V
Frame
56
Motor Shaft Rotation
Reversible
RPM Range
3450
Max. Ambient Temp.
40 Degrees C
Motor Service Factor
1.25
Voltage Compatibility
230/460 V
Motor Mounting Position
Horizontal
Motor Enclosure Design
Open Drip Proof
Motor Application
General Purpose
Inverter Rated
Yes
Usable @ 200V
Not Usable at 200V
Voltage @ 50Hz
190/380V
NEMA Design
B
Nominal Efficiency
77 %
Item
General Purpose Motor
Ins. Class
F
Phase
Three
No. of Speeds
1
Motor Design
Three-Phase
Service Factor @ 50Hz
1.25
Hz
60/50 Hz
Motor Thermal Protection
T-Stat
Full Load Amps
1.6 A
Motor Bearings
Ball
RPM @ 50Hz
2,850 RPM
Usable @ 208V
Usable at 208V
Motor Shaft Design
Keyed
Standards
CE, CSA Certified, UL Listed
Full Load Amps @ 50Hz
1.6 A
Weight
22 lb
Motor Frame Material
Steel
HP @ 50Hz
3/4 hp
Motor Mounting Type
Rigid Base
Duty Cycle
Continuous
Inverter Rating
Inverter Rated
Product Type
General Purpose Motor
Full Load Current @ 60 Hz
1.6 A
Motor Enclosure Type
Open Drip Proof
Efficiency Rating
NEMA Premium Efficiency
Mounting Position
Horizontal
Nameplate Horsepower @ 50 Hz
3/4 hp
Nameplate Service Factor @ 60 Hz
1.25
Application
General Purpose
Nameplate Service Factor @ 50 Hz
1.25
Number of Speeds
1
Full Load Current @ 50 Hz
1.6 A
Bearing Type
Ball
Insulation Class
F
Shaft Design
Keyed
NEMA Design Class
B
Nameplate RPM @ 50 Hz
2,850 RPM
Ambient Temperature - Maximum
40 Degrees C
Frequency
60/50 Hz
Nameplate Voltage @ 50 Hz
190/380V AC
Frame Material
Steel

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 HP, Nameplate RPM 3,450, Frame 56, Voltage 230/460V, 60/50 Hz Hz, Three Phase, Full Load Amps 1.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection T-Stat, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 77 Percent, 3450, CE, CSA Certified, UL Listed
