  11. Room Air Cond Mtr, PSC, OAO, 1075 RPM
Shop All Room Air Conditioner Motors
Century

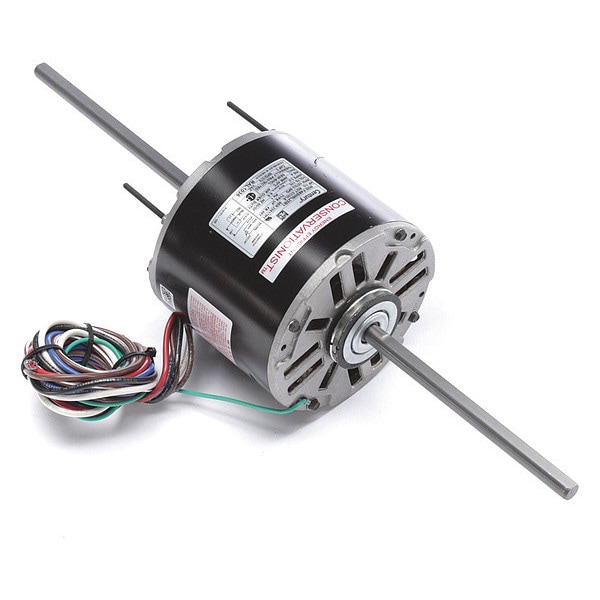

Room Air Cond Mtr, PSC, OAO, 1075 RPM

product price: $154.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design Permanent Split Capacitor
  • HP 1/3
  • RPM Range 1,001-1,100
  • No. of Speeds 3
  • Voltage 115V AC
See all product information

Product Information

Dimensions

Shaft Dia. 1/2 in
Bolt Circle Dia. 5 1/8 in
Body Dia. 5 5/8 in
Length Less Shaft 5 3/8 in
Shaft Length 7 7/8 in
Lead Length 35 in
Resilient Ring Dia. 2 1/4 in
Stud Size #8-32 x 1-5/8 in
Overall Length 20 in

Details

Motor Design Permanent Split Capacitor
HP 1/3
RPM Range 1,001-1,100
No. of Speeds 3
Voltage 115V AC
Motor Shaft Rotation CCWLE
Frame 48Y
Motor Enclosure Design Open Air-Over
Motor Mounting Type Ring/Stud
Standards CSA Certified, UL Recognized
Duty Continuous
Max. Ambient Temp. 40 Degrees C
Motor Thermal Protection Auto
Hz 60 Hz
Phase Single
Motor Sub Application Room Air Conditioner
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Mounting Stud Pattern 3-5/8 in x 3-5/8 in
Full Load Amps 5 A
Motor Application HVAC/R
Ins. Class A
Capacitor Required 2MDV4
Item Room Air Conditioner Motor
Motor Service Factor 1
Motor Bearings Sleeve
Nameplate RPM 1,075
Weight 18 lb
Motor Mounting Position Horizontal
Motor Frame Material Steel
Stud Quantity 4
Motor Shaft Design Flat
Mounting Holes (4) #8-32
Duty Cycle Continuous
Number of Shafts 2
Includes Extended Studs, Permanent Split Capacitor, Resilient Rings
Usable @ 208V No
Usable @ 200V No
Application Room Air Conditioners And Through-The-Wall Units, Shaft-Mounted Fan And Blower
Mounting Stud
Number of Speeds 3

Description

Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 HP, Nameplate RPM 1,075, No. of Speeds 3, Voltage 115V AC, Full Load Amps 5 A, 48Y Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class A, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Lead Length 35 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring/Stud, Motor Mounting Position Horizontal
