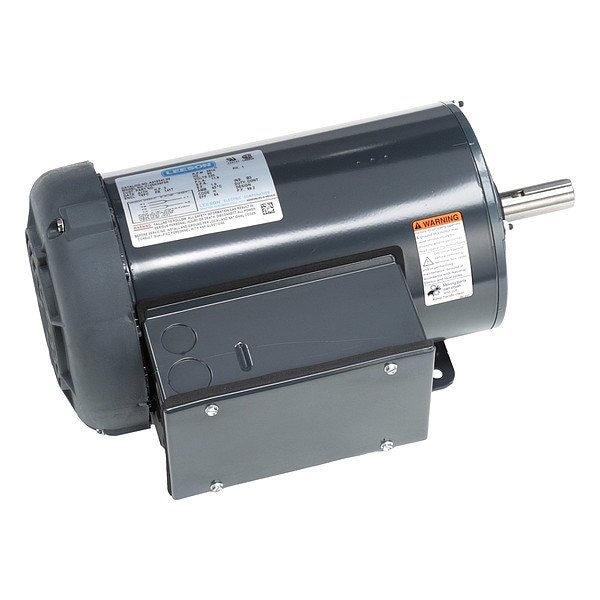

GeneralPurposeMotor, 3hp, 3510RPM, 145T

  • Mfr # A019341.00

  • Zoro # G412190389

product price:  $553.99
/ea
Free Shipping & Returns

Key Features

HP
3 hp
Nameplate RPM
3,510 RPM
Voltage
230V AC
Frame
145T
Shaft Dia.
7/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A019341.00
Zoro #
G412190389
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Length Less Shaft
10 5/8 in
Overall Length
14 7/8 in

Details

HP
3 hp
Nameplate RPM
3,510 RPM
Voltage
230V AC
Frame
145T
Motor Shaft Rotation
CW/CCW
RPM Range
3510
Motor Service Factor
1
Usable @ 208V
Not Usable at 208V
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Shaft Design
Keyed
Item
General Purpose Motor
No. of Speeds
1
Motor Frame Material
Steel
Voltage Compatibility
230 V
Motor Design
Capacitor-Start/Run
Phase
Single
Standards
CSA Certified, UL Listed
Weight
51 lb
Duty Cycle
Continuous
Max. Ambient Temp.
40 Degrees C
Nominal Efficiency
84 %
Ins. Class
B
NEMA Design
None
Motor Application
General Purpose
Usable @ 200V
Not Usable at 200V
Hz
60 Hz
Motor Mounting Position
Horizontal
Motor Thermal Protection
None
Motor Mounting Type
Rigid Base
Full Load Amps
11.8 A
Motor Bearings
Ball

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3 hp HP, Nameplate RPM 3,510 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 11.8 A, 145T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design None, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
