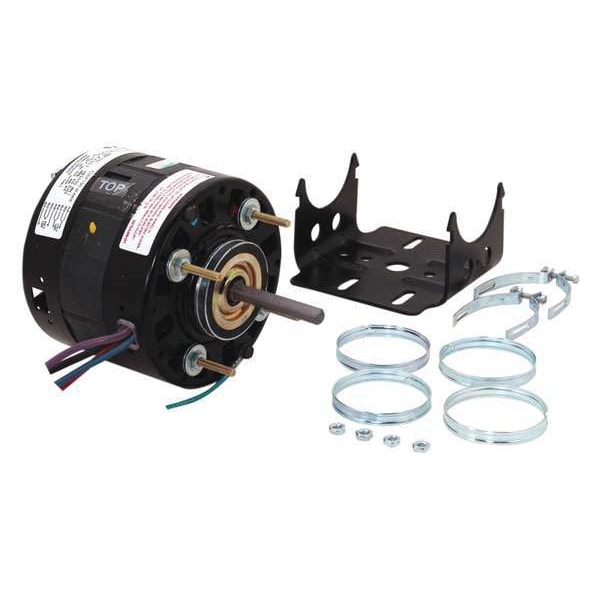

Mtr, Sh Pole, 1/10 HP, 1050, 115/208-230, 42Y

CENTURY| Zoro #: G1440047| Mfr #: RF6402

$112.95 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1440047 Mfr #: RF6402
Motor Bearings: SleeveCapacitor Required: No
Item: Direct Drive Blower MotorPhase: 1
Motor Thermal Protection: AutoMotor Enclosure Design: Open Air-Over
Motor Service Factor: 1.00Max. Ambient Temp.: 40 Degrees C
Motor Sub Application: Direct Drive Fan/BlowerMotor Shaft Design: Flat
Frame: 42YMotor Application: HVAC/R
HP: 1/10Motor Design: Shaded Pole
Body Dia.: 5"Duty: Continuous
Application: Room Air Conditioners, Unit Heaters, Condensers, Furnace Blowers, A Wide Range of Other Shaft Mounted Fan and Blower EquipmentVoltage Compatibility: 115, 120, 208, 230, 240, 115/208-230, 115/230, 120/240, 208-230, 208-240
Ins. Class: AStandards: CSA certified
Motor Shaft Rotation: CWSEVoltage: 115/208-230
Motor Mounting Position: All AngleShaft Length: 2-1/4"
Motor Mounting Type: Cradle BaseHz: 60/50
No. of Speeds: 1Nameplate RPM: 1050
Resilient Ring Dia.: 2-1/4"Includes: Mounting Rings
Ring to Ring Center: 4-9/16"Full Load Amps: 4.0/2.0-2.0
Length Less Shaft: 4-15/16"Shaft Dia.: 3/8"
Mounting Stud Pattern: 2-1/2" x 2-1/2"Stud Size: #10-32
Mounting Stud Location: Shaft EndBolt Circle Dia.: 3-1/2"
Country of Origin (subject to change): Mexico

Product Description

Direct Drive Blower Motor, Shaded Pole Motor Type, Open Air-Over Enclosure, 1/10 HP, 1050 Nameplate RPM, Voltage 115/208-230, 4.0/2.0-2.0 Full Load Amps, 60/50 Hz, 1 Phase, 42Y Frame, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class A, Duty Continuous, Number of Speeds 1, Mounting Cradle Base, Shaft Orientation All Angle, Bearings Sleeve, Thermal Protection Auto, Rotation CWSE, Body Dia. 5 In., Length Less Shaft 4-15/16 In., Shaft Dia. 3/8 In., Shaft Length 2-1/4 In.
