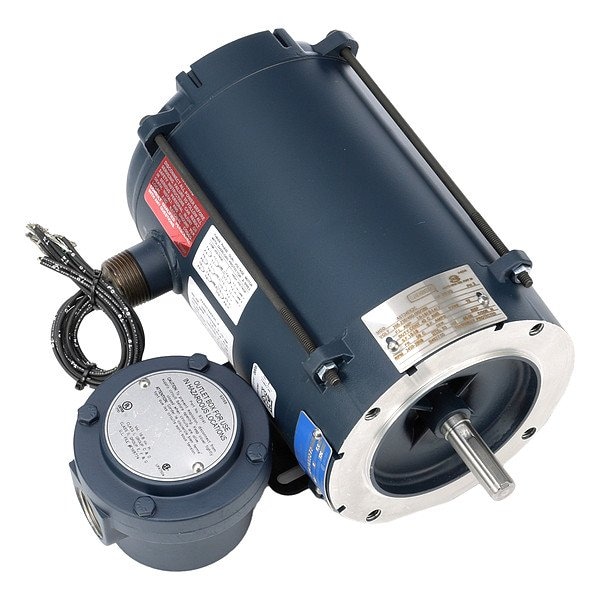

HazardousLocationMotor, 1/2hp, 3450RPM

  • Mfr # 114627.00

  • Zoro # G511935607

product price:
$
1,078.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1/2 hp
RPM Range
3,001-3,600
Voltage
208-230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
114627.00
Zoro #
G511935607
UPC #
691720014141
Country of Origin
Mexico

Dimensions

Bolt Circle Dia.
Not Available
Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Overall Length
12 1/2 in
Lead Length
6 in
Length Less Shaft
10 9/16 in
Wire Rope Length
12 1/2 in
Frame Size
56C
Shaft Diameter
5/8 in

Details

Motor Design
Three-Phase
Phase
Three
HP
1/2 hp
RPM Range
3,001-3,600
Voltage
208-230/460V AC
Frame
56C
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Motor Mounting Type
C-Face, Rigid Base
Temp. Code
T3B
RPM @ 50Hz
2,850 RPM
Ins. Class
B
Weight
31 lb
Motor Frame Material
Steel
Motor Shaft Rotation
CW/CCW
Includes
Explosion Proof Conduit Box
NEMA Design
B
Usable @ 200V
Not Usable at 200V
CC Number
Not Available
Voltage Compatibility
208V AC, 230V AC, 460V AC
No. of Speeds
1
Usable @ 208V
Usable at 208V
Motor Bearings
Ball
Max. Ambient Temp.
40 Degrees C
Motor Application
Hazardous Location
Item
Hazardous Location Motor
Nameplate RPM
3,450 RPM
Standards
CSA Certified, UL Listed
Conduit Box Location
Not Available
Full Load Amps
0.80 A
Motor Shaft Design
Keyed
Motor Service Factor
1
Nominal Efficiency
75.5 %
Service Factor @ 50Hz
1
Full Load Amps @ 50Hz
0.80 A
Duty Cycle
Continuous
HP @ 50Hz
1/3 hp
Hz
60/50 Hz
Voltage @ 50Hz
190/380V AC
Hazardous Location Division
Division I
Motor Mounting Position
Horizontal
Hazardous Location Group
Group C, Group D, Group F, Group G
Nameplate RPM @ 50 Hz
2,850 RPM
Temperature Code
T3B
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed
Mounting Position
Horizontal
Efficiency Rating
Standard Efficiency (IE1)
Product Type
Hazardous Location Motor
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Bearing Type
Ball
Frequency
60/50 Hz
Insulation Class
B
Full Load Current @ 50 Hz
0.80 A
NEMA Design Class
B
Full Load Current @ 60 Hz
0.80 A
Application
Hazardous Location
Nameplate Horsepower @ 50 Hz
1/3 hp
Nameplate Service Factor @ 60 Hz
1
Frame Material
Steel
Nameplate Service Factor @ 50 Hz
1
Number of Speeds
1

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 0.80 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Non-Ventilated, Duty Cycle Continuous
