Shop LEESON

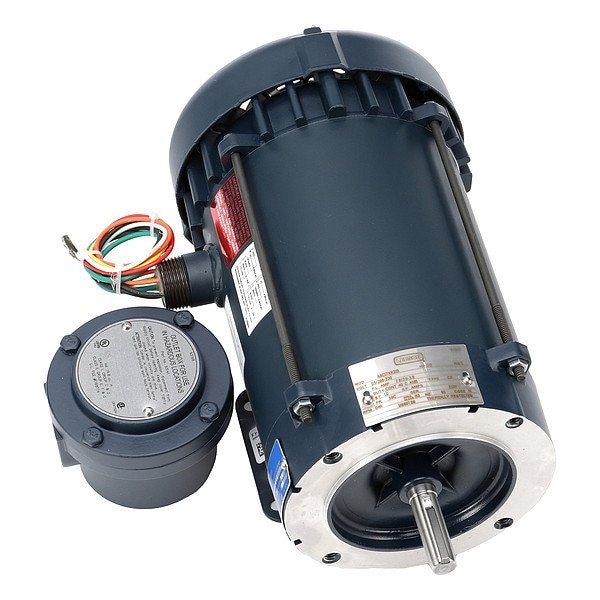

HazardousLocationMotor, 1/3hp, 1140RPM

  • Mfr # 116607.00

  • Zoro # G811935598

product price:  $930.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Phase
Single
HP
1/3 hp
RPM Range
1,101-1,200
Voltage
115/208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
116607.00
Zoro #
G811935598
UPC #
691720341780
Country of Origin
Mexico

Dimensions

Shaft Length
1 7/8 in
Length Less Shaft
12 1/16 in
Shaft Dia.
5/8 in
Overall Length
13 15/16 in
Lead Length
8 in
Frame Size
56C
Shaft Diameter
5/8 in
Wire Rope Length
13 15/16 in

Details

Motor Design
Capacitor-Start
Phase
Single
HP
1/3 hp
RPM Range
1,101-1,200
Voltage
115/208-230V AC
Frame
56C
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
Motor Mounting Position
Horizontal
Full Load Amps
3.9 A
Weight
33 lb
Motor Bearings
Ball
Usable @ 208V
Usable at 208V
Standards
CSA Certified, UL Listed
Hazardous Location Division
Division I
NEMA Design
N
Motor Shaft Rotation
CWSE
Motor Shaft Design
Keyed
Voltage Compatibility
115V AC, 208V AC, 230V AC
Ins. Class
B
Motor Frame Material
Steel
Nameplate RPM
1,140 RPM
Temp. Code
T3B
Usable @ 200V
Not Usable at 200V
No. of Speeds
1
Hz
60 Hz
Includes
Explosion Proof Conduit Box
Motor Service Factor
1
Nominal Efficiency
52.5 %
Duty Cycle
Continuous
Motor Application
Hazardous Location
Item
Hazardous Location Motor
Max. Ambient Temp.
40 Degrees C
Hazardous Location Group
Group C, Group D, Group F, Group G
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frequency
60 Hz
Mounting Position
Horizontal
Product Type
Hazardous Location Motor
Nameplate Service Factor @ 60 Hz
1
Temperature Code
T3B
Full Load Current @ 60 Hz
3.9 A
Shaft Design
Keyed
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Application
Hazardous Location
Frame Material
Steel
NEMA Design Class
N
Number of Speeds
1
Insulation Class
B
Efficiency Rating
Standard Efficiency (IE1)

Description

Hazardous Location Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 3.9 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
