Shop DAYTON

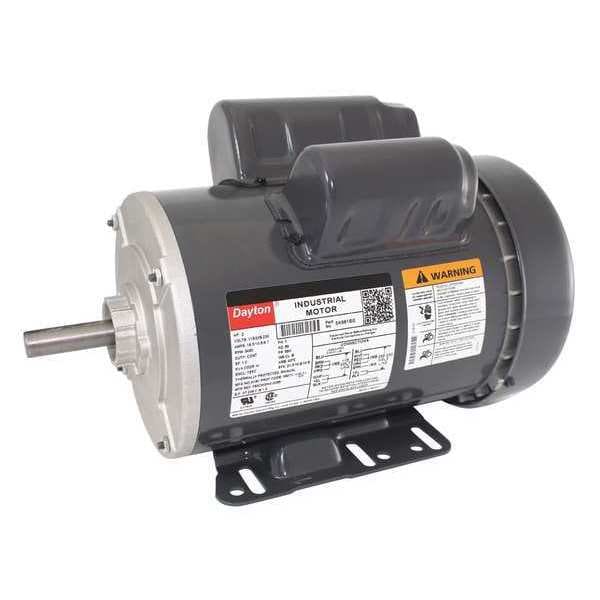

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/208-230V AC Voltage, 56H Frame

  • Mfr # 5K961

  • Zoro # G2331147

product price:  $730.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
2 hp
RPM Range
3,001-3,600
Voltage
115/208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5K961
Zoro #
G2331147
UPC #
190735345597
Country of Origin
Multiple

Dimensions

Manufacturers Warranty Length
1 yr
Shaft Length
1 7/8 in
Length Less Shaft
11 1/2 in
Shaft Dia.
5/8 in
Overall Length
13 3/8 in
Wire Rope Length
13 3/8 in
Frame Size
56H
Shaft Diameter
5/8 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
2 hp
RPM Range
3,001-3,600
Voltage
115/208-230V AC
Frame
56H
Motor Thermal Protection
Manual
Motor Service Factor
1
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application
General Purpose
Nameplate RPM
3,450 RPM
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start/Run
Standards
CSA Certified (258501), UL Recognized (E37403)
Hz
60 Hz
RPM Group
3001-3600
Includes
Conduit Box
Max. Ambient Temp.
40 Degrees C
Motor Efficiency Group
Energy Efficient
Full Load Amps
19.5/10.8-9.7 A
Phase
Single
Footnotes
24,51
Frame Material
Steel
Motor Bearings
Ball
Duty
Continuous
Ins. Class
B
Nominal Efficiency
79.8 %
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Efficiency Rating
High Efficiency (IE2)
Ambient Temperature - Maximum
40 Degrees C
Manufacturers Warranty
1 yr
Application
General Purpose
Full Load Current @ 60 Hz
19.5/10.8-9.7 A
Mounting Position
All Angle
Bearing Type
Ball
Motor Enclosure Type
Totally Enclosed Fan Cooled
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1
Shaft Design
Keyed
Product Type
General Purpose Motor
Frequency
60 Hz
Number of Speeds
1

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 19.5/10.8-9.7 A, 56H Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
