Shop LEESON

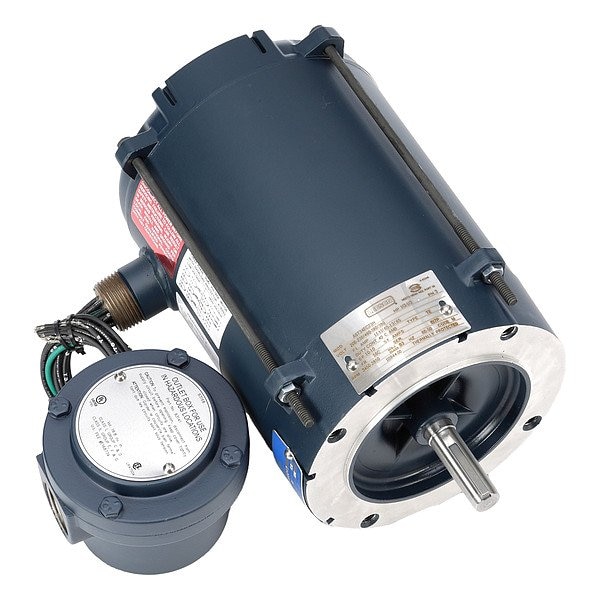

HazardousLocationMotor, 1/3hp, 3450RPM

  • Mfr # 111944.00

  • Zoro # G611935576

product price:
$
946.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1/3 hp
RPM Range
3,001-3,600
Voltage
208-230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
111944.00
Zoro #
G611935576
UPC #
691720010334
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Lead Length
6 in
Shaft Length
1 7/8 in
Length Less Shaft
10 1/16 in
Overall Length
12 in
Shaft Diameter
5/8 in
Wire Rope Length
12 in
Frame Size
56C

Details

Motor Design
Three-Phase
Phase
Three
HP
1/3 hp
RPM Range
3,001-3,600
Voltage
208-230/460V AC
Frame
56C
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Motor Mounting Type
C-Face
Full Load Amps @ 50Hz
0.65 A
Voltage Compatibility
208V AC, 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
NEMA Design
B
CC Number
Not Available
Item
Hazardous Location Motor
Duty Cycle
Continuous
Hz
60/50 Hz
Temp. Code
T3B
No. of Speeds
1
Hazardous Location Division
Division I
RPM @ 50Hz
2,850 RPM
Includes
Explosion Proof Conduit Box
Motor Shaft Design
Keyed
Ins. Class
B
Standards
CSA Certified, UL Listed
Motor Service Factor
1
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Motor Bearings
Ball
Nameplate RPM
3,450 RPM
Nominal Efficiency
77 %
Full Load Amps
0.65 A
Max. Ambient Temp.
40 Degrees C
Conduit Box Location
Not available
Motor Frame Material
Steel
Weight
26 lb
Voltage @ 50Hz
190/380V AC
Motor Application
Hazardous Location
Service Factor @ 50Hz
1
Motor Mounting Position
Horizontal
HP @ 50Hz
1/3 hp
Hazardous Location Group
Group C, Group D, Group F, Group G
Shaft Design
Keyed
Nameplate RPM @ 50 Hz
2,850 RPM
Full Load Current @ 50 Hz
0.65 A
Nameplate Service Factor @ 50 Hz
1
Bearing Type
Ball
Product Type
Hazardous Location Motor
NEMA Design Class
B
Nameplate Horsepower @ 50 Hz
1/3 hp
Frequency
60/50 Hz
Number of Speeds
1
Efficiency Rating
Standard Efficiency (IE1)
Nameplate Service Factor @ 60 Hz
1
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Insulation Class
B
Full Load Current @ 60 Hz
0.65 A
Mounting Position
Horizontal
Application
Hazardous Location
Temperature Code
T3B

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1/3 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 0.65 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Non-Ventilated, Duty Cycle Continuous
