Shop LEESON

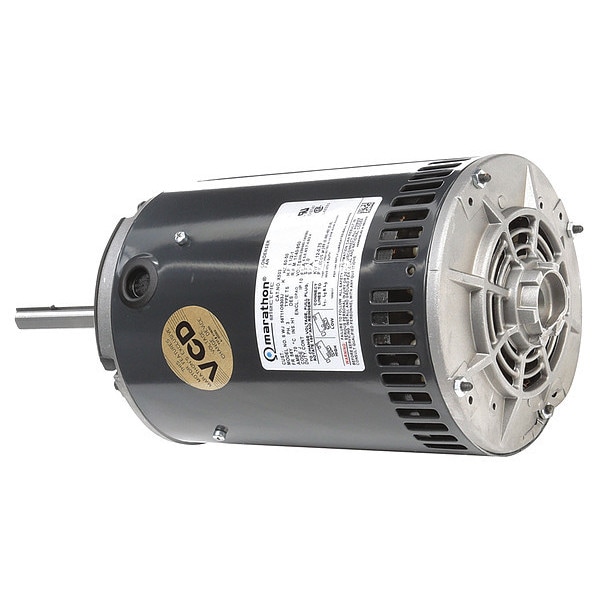

Condenser Fan Motor, 1 1/2 hp

  • Mfr # 056T11O5303

  • Zoro # G7257140

product price:
$
427.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1 1/2
RPM Range
1,101-1,200
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056T11O5303
Zoro #
G7257140
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
5 in
Body Dia.
6 1/2 in
Length Less Shaft
11 1/16 in
Manufacturers Warranty Length
1 yr
Overall Length
16 1/16 in
Body Diameter
6.5 in
Shaft Diameter
5/8 in
Frame Size
56Y
Wire Rope Length
16 1/16 in
Length
16 1/16 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1 1/2
RPM Range
1,101-1,200
No. of Speeds
1
Voltage
200-230/460V AC
Motor Shaft Rotation
CW/CCW
Frame
56Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Band/Stud
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Thermal Protection
Auto
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
1,140
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
Full Load Amps
5.5-5.4/2.7 A
Ins. Class
H
Hz
60/50 Hz
Capacitor Required
Capacitor Not Required
Motor Service Factor
1
Nominal Efficiency
78.5 %
Standards
CSA Certified (LR2025), UL Recognized
Features
(4) Locating Screws 90 Degrees Apart, 3 5/16 in From Outer Edge of Shaft Slinger, Voltage Change Device for Quick Voltage Changes
Motor Shaft Design
Keyed with Single Flat
Application
Condenser Fan
Motor Bearings
Ball
Duty
Continuous
Removable Base
No
Duty Cycle
Continuous
Conduit Box Location
Exterior
Conduit Box Position
F1
Motor Frame Material
Steel
HP @ 50Hz
1-1/2
RPM @ 50Hz
1,140
Service Factor @ 50Hz
1
Full Load Amps @ 50Hz
5.5-5.4/2.7 A
Usable @ 208V
Usable at 208V
Voltage @ 50Hz
200-230/460V AC
Usable @ 200V
Usable at 200V
Output Watts
1100 W
Weight
35 lb
Nameplate RPM @ 50 Hz
1,140 RPM
Bearing Type
Ball
Drive Type
Direct Drive
Ambient Temperature - Maximum
70 Degrees C
Nameplate Service Factor @ 60 Hz
1
Shaft Design
Keyed
Motor Enclosure Type
Open Air Over
Manufacturers Warranty
1 yr
Nameplate Service Factor @ 50 Hz
1
Frame Material
Steel
Number of Speeds
1
Sub Application
Condenser Fan
Wattage
1100 W
Nameplate Horsepower @ 50 Hz
1 1/2 hp
Full Load Current @ 60 Hz
5.5-5.4/2.7 A
Frequency
60/50 Hz
Insulation Class
H
Full Load Current @ 50 Hz
5.5-5.4/2.7 A
Product Type
Condenser Fan Motor
Nameplate Voltage @ 50 Hz
200-230/460V AC
Mounting Position
Horizontal/Vertical Shaft Up

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 5.5-5.4/2.7 A Full Load Amps, 56Y Frame, Output Watts 1100 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class H, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band
