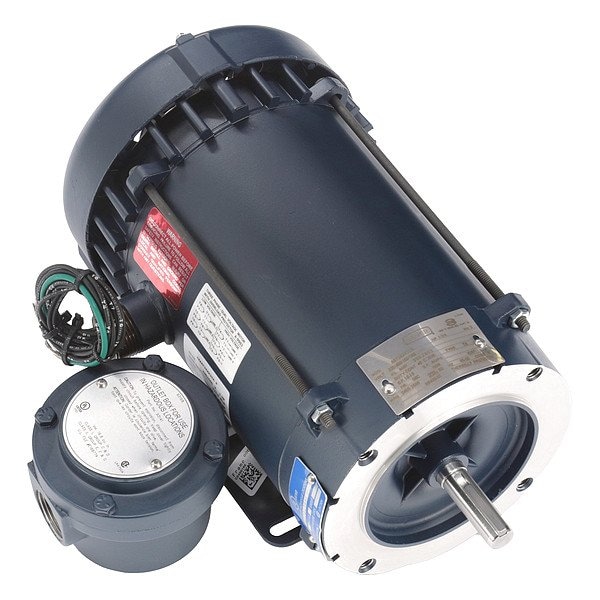

HazardousLocationMotor, 1hp, 3450RPM

  • Mfr # 119436.00

  • Zoro # G711935575

product price:  $1,129.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1 hp
RPM Range
3,001-3,600
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
119436.00
Zoro #
G711935575
UPC #
691720047118
Country of Origin
Mexico

Dimensions

Shaft Length
1 7/8 in
Length Less Shaft
12 1/16 in
Lead Length
6 in
Shaft Dia.
5/8 in
Overall Length
13 15/16 in
Wire Rope Length
13 15/16 in
Shaft Diameter
5/8 in
Frame Size
56C

Details

Motor Design
Three-Phase
Phase
Three
HP
1 hp
RPM Range
3,001-3,600
Voltage
230V AC, 460V AC
Frame
56C
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
NEMA Design
B
HP @ 50Hz
3/4 hp
Weight
38 lb
Hazardous Location Division
Division I
Full Load Amps
1.5 A
Max. Ambient Temp.
40 Degrees C
Includes
Explosion Proof Conduit Box
Ins. Class
B
Hz
60/50 Hz
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Full Load Amps @ 50Hz
1.5 A
Motor Mounting Position
Horizontal
Motor Application
Hazardous Location
Conduit Box Location
Not available
Motor Bearings
Ball
Motor Shaft Design
Keyed
Item
Hazardous Location Motor
Motor Frame Material
Steel
Voltage @ 50Hz
190/380V AC
Service Factor @ 50Hz
1
Nameplate RPM
3,450 RPM
CC Number
Not Available
Motor Service Factor
1
Voltage Compatibility
230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Temp. Code
T3B
Nominal Efficiency
80 %
RPM @ 50Hz
2,850 RPM
Usable @ 208V
Not Usable at 208V
Standards
CSA Certified, UL Listed
Hazardous Location Group
Group C, Group D, Group F, Group G
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frame Material
Steel
Full Load Current @ 60 Hz
1.5 A
Ambient Temperature - Maximum
40 Degrees C
Number of Speeds
1
Nameplate RPM @ 50 Hz
2,850 RPM
NEMA Design Class
B
Nameplate Service Factor @ 50 Hz
1
Application
Hazardous Location
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1
Efficiency Rating
Premium Efficiency (IE3)
Temperature Code
T3B
Full Load Current @ 50 Hz
1.5 A
Mounting Position
Horizontal
Bearing Type
Ball
Nameplate Horsepower @ 50 Hz
3/4 hp
Product Type
Hazardous Location Motor
Frequency
60/50 Hz
Shaft Design
Keyed

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 1.5 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
