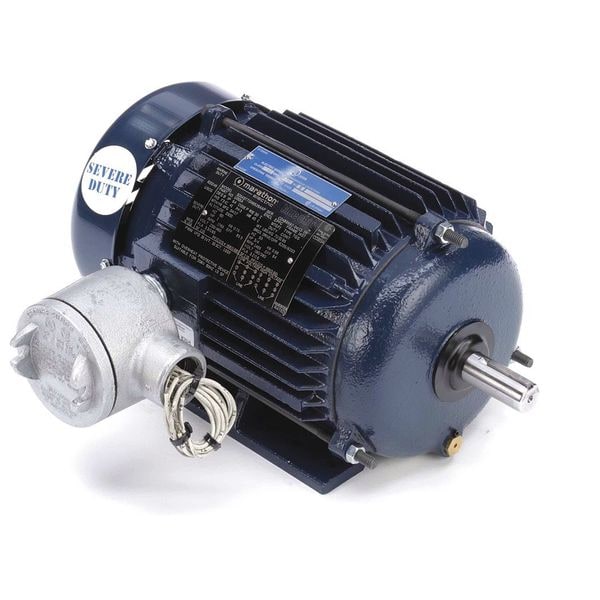

HazLoc Motor, 1 HP, 1765 RPM, 208-230/460V

  • Mfr # 143TTGN6526
  • Zoro # G5504834
product price:
$
846.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
143TTGN6526
Zoro #
G5504834
UPC #
-
Country of Origin
United States

Dimensions

Shaft Length
2 1/4 in
Overall Length
14 3/4 in
Shaft Dia.
7/8 in
Length Less Shaft
12 7/16 in
Lead Length
12 in
Manufacturers Warranty Length
3 yr
Shaft Diameter
7/8 in
Wire Rope Length
14 3/4 in
Frame Size
143T
Length
14 3/4 in

Details

Motor Design
Three-Phase
Phase
Three
HP
1 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
Frame
143T
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
T-Stat
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Motor Shaft Rotation
CW/CCW
Motor Application
Hazardous Location
Nameplate RPM
1,765 RPM
Ins. Class
F
Includes
(11) 12 in Leads through 1/2 in NPT Nipple
Standards
CSA Certified, UL Listed
Max. Ambient Temp.
40 Degrees C
Motor Service Factor
1.15
Full Load Amps
3.3/1.7 A
Motor Bearings
Ball
Frame Material
Cast Iron
Nominal Efficiency
85.5 %
Motor Efficiency Group
NEMA Premium Efficient
Temp. Code
T3B
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Motor Shaft Design
Keyed
Duty
Continuous
CC Number
CC003A
Hz
60 Hz
NEMA Design
B
Item
Hazardous Location Motor
Motor Frame Material
Cast Iron
Green Certification or Other Recognition
NEMA Premium(R) Rated
Hazardous Location Division
Division I
Motor Mounting Position
Horizontal
Usable @ 208V
Not Usable at 208V
Conduit Box Location
Exterior
Usable @ 200V
Not Usable at 200V
Weight
25 lb
Duty Cycle
Continuous
No. of Speeds
1
Hazardous Location Group
Group D, Group F, Group G
Application
Hazardous Location
Manufacturers Warranty
3 yr
Mounting Position
Horizontal
Nameplate Service Factor @ 60 Hz
1.15
Number of Speeds
1
Bearing Type
Ball
Motor Enclosure Type
Totally Enclosed Fan Cooled
NEMA Design Class
B
Temperature Code
T3B
Insulation Class
F
Full Load Current @ 60 Hz
3.3/1.7 A
Shaft Design
Keyed
Product Type
Hazardous Location Motor
Ambient Temperature - Maximum
40 Degrees C
Efficiency Rating
Premium Efficiency (IE3)
Frequency
60 Hz

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,765 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 3.3/1.7 A, 143T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
