Shop LEESON

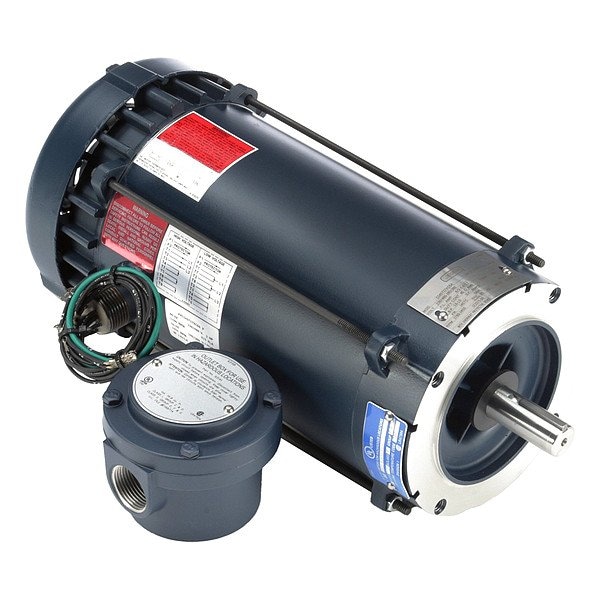

HazardousLocationMotor, 2hp, 1760RPM

  • Mfr # 122175.00

  • Zoro # G011935572

product price:
$
1,431.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
122175.00
Zoro #
G011935572
UPC #
691720047002
Country of Origin
Mexico

Dimensions

Overall Length
16 1/2 in
Shaft Length
2 1/4 in
Shaft Dia.
7/8 in
Lead Length
6 in
Length Less Shaft
14 1/4 in
Wire Rope Length
16 1/2 in
Shaft Diameter
7/8 in
Frame Size
145TC

Details

Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
Frame
145TC
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
T-Stat
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face
No. of Speeds
1
Motor Service Factor
1
Hazardous Location Division
Division I
Includes
Explosion Proof Conduit Box
NEMA Design
B
HP @ 50Hz
1 1/2 hp
Voltage @ 50Hz
190/380V AC
Voltage Compatibility
230V AC, 460V AC
Motor Bearings
Ball
Motor Shaft Rotation
CW/CCW
CC Number
Not Available
Usable @ 200V
Not Usable at 200V
Ins. Class
B
Nominal Efficiency
86.5 %
Hz
60/50 Hz
Weight
54.2 lb
Full Load Amps @ 50Hz
3.0 A
RPM @ 50Hz
1,455 RPM
Motor Shaft Design
Keyed
Conduit Box Location
Not available
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Service Factor @ 50Hz
1
Item
Hazardous Location Motor
Duty Cycle
Continuous
Nameplate RPM
1,760 RPM
Standards
CSA Certified, UL Listed
Temp. Code
T3B
Full Load Amps
3.0 A
Motor Mounting Position
Horizontal
Motor Application
Hazardous Location
Usable @ 208V
Not Usable at 208V
Hazardous Location Group
Group C, Group D, Group F, Group G
Insulation Class
B
Bearing Type
Ball
Efficiency Rating
Premium Efficiency (IE3)
Motor Enclosure Type
Totally Enclosed Fan Cooled
Application
Hazardous Location
Nameplate Service Factor @ 50 Hz
1
Temperature Code
T3B
Full Load Current @ 50 Hz
3.0 A
Nameplate RPM @ 50 Hz
1,455 RPM
Shaft Design
Keyed
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1
NEMA Design Class
B
Full Load Current @ 60 Hz
3.0 A
Product Type
Hazardous Location Motor
Frequency
60/50 Hz
Nameplate Horsepower @ 50 Hz
1 1/2 hp
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Mounting Position
Horizontal

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 3.0 A, 145TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
