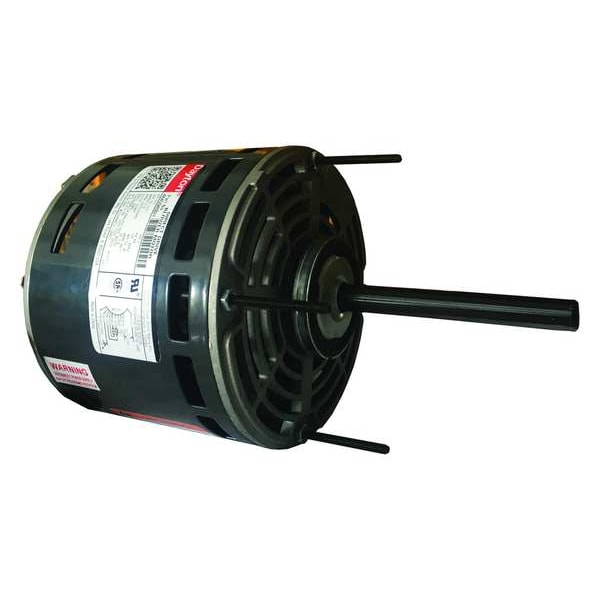

Motor, 1/3 HP, 1075, 3 Spd, 115 V, 48YZ, OPAO

Mfr # 4M098BG
Zoro # G1592297

$141.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Motor Shaft Design Flat
Motor Application HVAC/R
Frame 48YZ
No. of Speeds 3
Overall Length 9 11/16 in

See all product information

Brand Dayton
MFR # 4M098BG
Zoro # G1592297
UPC #
190735330036
Country of Origin China
Category Permanent Split Capacitor Blower Motors

Dimensions

Overall Length	9 11/16 in
Shaft Dia.	1/2 in
Length Less Shaft	5 11/16 in
Body Dia.	5 5/8 in
Shaft Length	4 in
Resilient Ring Dia.	2 1/4 in
Bolt Circle Dia.	5 1/8 in
Stud Size	8-32 NC 2A Thread x 1 5/8 in

Details

Motor Shaft Design	Flat
Motor Application	HVAC/R
Frame	48YZ
No. of Speeds	3
Duty	Continuous
RPM Range	1,001-1,100
Includes	Split Rings to Increase Ring Diameter to 2 1/2 in
Motor Sub Application	Direct Drive
Max. Ambient Temp.	40 Degrees C
Voltage Compatibility	115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Thermal Protection	Auto
Motor Mounting Position	All Angle
Motor Shaft Rotation	CW/CCW
Motor Service Factor	1
HP	1/3
Standards	CSA Certified (258501), UL Recognized (E37403)
Application	Direct-drive Furnace Blowers, Unit Heaters, Air Conditioners and many other Shaft-mounted Fan and Blower Uses
Voltage	115V AC
Nominal Efficiency	61.2 %
Phase	Single
Hz	60 Hz
Full Load Amps	5 A
Motor Bearings	Sleeve
Ring to Ring Center	5 1/4 in
Motor Enclosure Design	Open Air-Over
Motor Design	Permanent Split Capacitor
Motor Mounting Type	Stud
Ins. Class	B
Nameplate RPM	1,075
Item	Direct Drive Blower Motor
Capacitor Required	2MDV4
Duty Cycle	Continuous
Mounting	Stud
Number of Speeds	3

Description

Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 HP, Nameplate RPM 1,075, No. of Speeds 3, Voltage 115V AC, Full Load Amps 5 A, 48YZ Frame, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle
