  11. HazardousLocationMotor, 2hp, 3450RPM
No Product Image Available

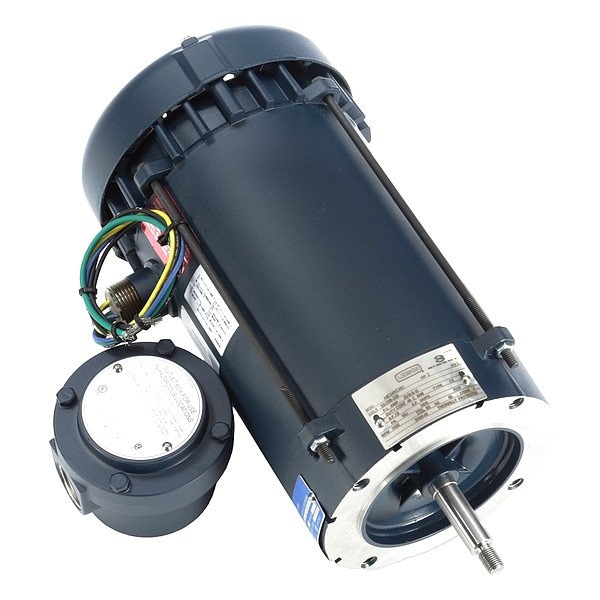

HazardousLocationMotor, 2hp, 3450RPM

  • Mfr # 116181.00

  • Zoro # G211935570

product price: $1,241.79
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Phase
Single
HP
2 hp
RPM Range
3,001-3,600
Voltage
115/208-230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
116181.00
Zoro #
G211935570
UPC #
691720255940
Country of Origin
Mexico

Dimensions

Length Less Shaft
13 in
Lead Length
10 in
Shaft Length
2 9/16 in
Overall Length
15 7/16 in
Shaft Dia.
5/8 in

Details

Motor Design
Capacitor-Start
Phase
Single
HP
2 hp
RPM Range
3,001-3,600
Voltage
115/208-230V AC
Frame
56J
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face
Hz
60 Hz
NEMA Design
L
Motor Service Factor
1
Usable @ 208V
Usable at 208V
Motor Bearings
Ball
Ins. Class
B
Temp. Code
T3B
Duty Cycle
Continuous
Hazardous Location Division
Division I
Item
Hazardous Location Motor
Motor Frame Material
Steel
Includes
Explosion Proof Conduit Box
Nameplate RPM
3,450 RPM
Motor Shaft Design
Threaded
Usable @ 200V
Not Usable at 200V
Weight
43 lb
Motor Shaft Rotation
CCWSE
Max. Ambient Temp.
40 Degrees C
Standards
CSA Certified, UL Listed
Motor Application
Hazardous Location
Full Load Amps
10.0 A
Nominal Efficiency
75.5 %
No. of Speeds
1
Motor Mounting Position
Horizontal
Voltage Compatibility
115V AC, 208V AC, 230V AC
Hazardous Location Group
Group C, Group D, Group F, Group G

Description

Hazardous Location Motor, Single Phase, Motor Design Capacitor-Start, 2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 10.0 A, 56J Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
