Leeson

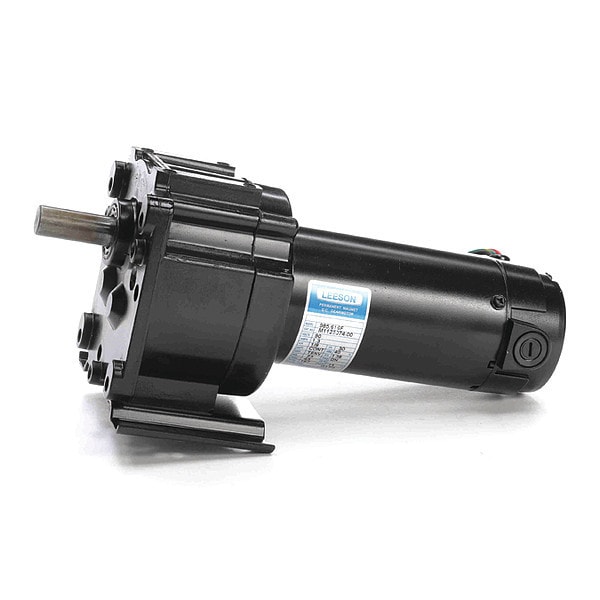

90 Volt Dc Gearmotor

product price: $679.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Rear Shaft Encoder/Pulse Generator Mounting No
  • Shaft Orientation Parallel
  • Rotation CW/CCW
  • Thermal Protection None
  • Gear Ratio 11:1
See all product information

Product Information

Dimensions

Overall Length 11.45 in
Output Shaft Length 1 1/2 in
Overall Width 4.08 in
Keyway Depth 3/16 in
Overall Height 6.26 in
Keyway Width 3/16 in
Keyway Length 1 in
Output Connection Depth 1 1/2 in
Mount Hole Center-to-Center Width 4 in
Mount Hole Center-to-Center Length 4 in
Housing Mount Hole Size 0.281 in
Output Shaft Diameter 5/8 in

Details

Rear Shaft Encoder/Pulse Generator Mounting No
Item 90 Volt Dc Gearmotor
Shaft Orientation Parallel
Rotation CW/CCW
Thermal Protection None
Gear Ratio 11:1
Gear Material Steel
Standards CE Certified, CSA Certified, UL Recognized
Lubrication Semi-Fluid Grease
Motor Frame Designation 30
Maximum Torque 43 in-lb
Operating Voltage 90V DC
Keyway Type Square
Motor Enclosure Totally Enclosed Nonventilated
Motor Duty Class Continuous
Features Performance Matched for Continuous Duty
Maximum Ambient Temperature 40 Degrees C
Service Factor 1
Bearing Type Needle
Nameplate Speed 167 RPM
Vent Type None
Full Load Current 1.3 A
Efficiency 70.7%
Mount Type Special
Output Shaft Type Keyed
Motor Insulation Class F
Maximum Output Speed 167 RPM

Description

90 Volt Dc Gearmotor, Shaft Orientation Parallel, Output Shaft Type Keyed, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Nameplate Speed 167 RPM, Maximum Torque 43 in-lb, Rotation CW/CCW, Motor Frame Designation 30, Gear Ratio 11:1, Motor Insulation Class F, Output Connection Depth 1 1/2 in, Efficiency 70.7 Percent, Output Shaft Diameter 5/8 in, Bearing Type Needle
