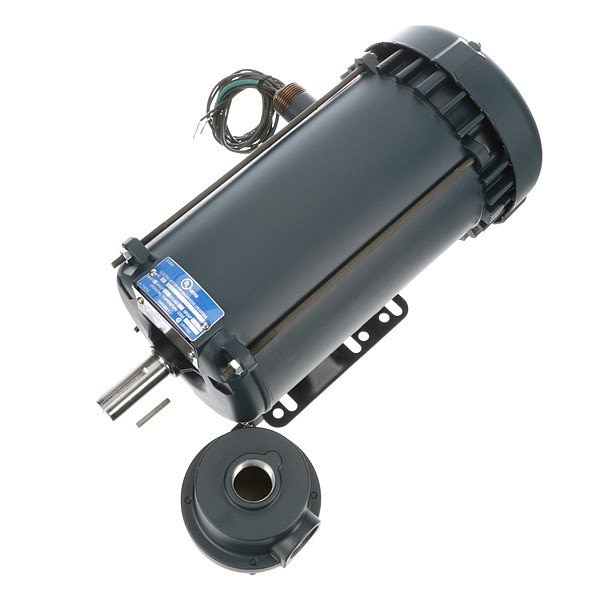

HazardousLocationMotor, 2hp, 3500RPM

  • Mfr # 121916.00

  • Zoro # G111935601

product price:
$
1,053.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
3,001-3,600
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
121916.00
Zoro #
G111935601
UPC #
691720211830
Country of Origin
Mexico

Dimensions

Overall Length
16 1/2 in
Shaft Dia.
7/8 in
Lead Length
6 in
Length Less Shaft
14 1/4 in
Shaft Length
2 1/4 in
Shaft Diameter
7/8 in
Frame Size
145T
Wire Rope Length
16 1/2 in

Details

Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
3,001-3,600
Voltage
230V AC, 460V AC
Frame
145T
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Usable @ 208V
Not Usable at 208V
Voltage Compatibility
230V AC, 460V AC
Includes
Explosion Proof Conduit Box
Motor Service Factor
1
Temp. Code
T3B
Conduit Box Location
Not available
CC Number
Not Available
Voltage @ 50Hz
190/380V AC
No. of Speeds
1
Full Load Amps
2.5 A
Standards
CSA Certified, UL Listed
RPM @ 50Hz
2,870 RPM
HP @ 50Hz
2 hp
Nameplate RPM
3,500 RPM
Motor Shaft Design
Keyed
Duty Cycle
Continuous
Motor Bearings
Ball
Full Load Amps @ 50Hz
2.5 A
NEMA Design
B
Service Factor @ 50Hz
1
Motor Frame Material
Steel
Item
Hazardous Location Motor
Max. Ambient Temp.
40 Degrees C
Weight
55 lb
Ins. Class
B
Hz
60/50 Hz
Usable @ 200V
Not Usable at 200V
Motor Application
Hazardous Location
Motor Shaft Rotation
CW/CCW
Motor Mounting Position
Horizontal
Nominal Efficiency
84 %
Hazardous Location Division
Division I
Hazardous Location Group
Group C, Group D, Group F, Group G
Shaft Design
Keyed
Application
Hazardous Location
Efficiency Rating
Premium Efficiency (IE3)
Full Load Current @ 50 Hz
2.5 A
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Ball
Number of Speeds
1
Insulation Class
B
NEMA Design Class
B
Full Load Current @ 60 Hz
2.5 A
Ambient Temperature - Maximum
40 Degrees C
Mounting Position
Horizontal
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Horsepower @ 50 Hz
2 hp
Frame Material
Steel
Product Type
Hazardous Location Motor
Temperature Code
T3B
Nameplate Service Factor @ 50 Hz
1
Frequency
60/50 Hz
Nameplate RPM @ 50 Hz
2,870 RPM

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 3,500 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 2.5 A, 145T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
