Shop LEESON

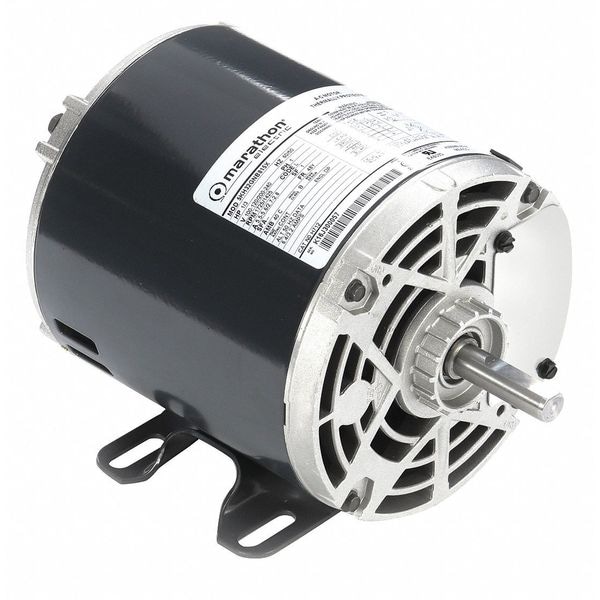

Pump Mtr, 1/3hp, 1725, 100-120/200-240V, 48Y

  • Mfr # 5KH32GNB815X
  • Zoro # G0568741
product price:
$
225.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
HP
1/3 hp, 1/2 hp
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
115V AC, 230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5KH32GNB815X
Zoro #
G0568741
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Overall Length
9 3/8 in
Shaft Length
1 1/2 in
Length Less Shaft
7 7/8 in
Height
5 13/16 in
Body Dia.
5.6 in
Shaft Dia. (In.)
1/2
Body Diameter
5.6 in
Shaft Diameter
1/2 in
Frame Size
48Y
Wire Rope Length
9 3/8 in
Length
9 3/8 in

Details

Item
Carbonator Pump Motor
Motor Design
Split-Phase
HP
1/3 hp, 1/2 hp
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
115V AC, 230V AC
Frame
48Y
Motor Mounting Type
Rigid Base
Motor Service Factor
1
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
Full Load Amps
5.6/2.8 A
Max. Ambient Temp.
40 Degrees C
Hz
60 Hz
Motor Shaft Rotation
CW/CCW
Motor Enclosure Design
Open Dripproof
Motor Bearings
Ball
Ins. Class
B
Motor Sub Application
Carbonator Pump
Motor Thermal Protection
Auto
Standards
CE Mark, CSA Certified, UL Recognized
Phase
Single
Motor Application
Pump
Nominal Efficiency
63.7 %
Motor Frame Material
Steel
Duty Cycle
Continuous
No. of Speeds
1
Usable @ 208V
Usable at 208V
Motor Mounting Position
All Angle
Weight
14 lb
Usable @ 200V
Usable at 200V
RPM @ 50Hz
1,425
Application
Pump
Nameplate RPM @ 50 Hz
1,425 RPM
Full Load Current @ 60 Hz
5.6/2.8 A
Frame Material
Steel
Bearing Type
Ball
Product Type
Pump Motor
Number of Wires
9
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Mounting Position
All Angle
Number of Speeds
1
Frequency
60 Hz
Motor Enclosure Type
Open Drip Proof
Sub Application
Carbonator Pump
Ambient Temperature - Maximum
40 Degrees C

Description

Carbonator Pump Motor, Body Dia. 5.6 in, Duty Cycle Continuous, Frame 48Y, Hz 60 Hz, Full Load Amps 5.6/2.8, Height 5 13/16 in, HP 1/3, Ins. Class B, Length Less Shaft 7 7/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Split-Phase, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
