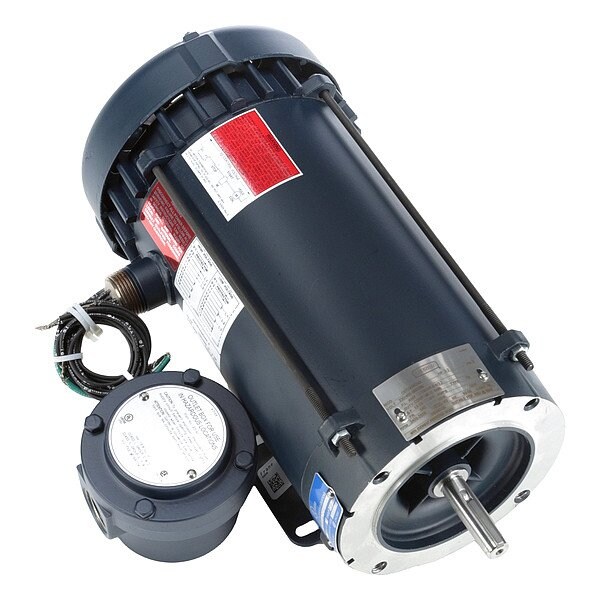

HazardousLocationMotor, 3hp, 3450RPM

  • Mfr # 119443.00

  • Zoro # G611935583

product price:
$
1,501.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
3 hp
RPM Range
3,001-3,600
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
119443.00
Zoro #
G611935583
UPC #
691720047187
Country of Origin
Mexico

Dimensions

Length Less Shaft
14 1/16 in
Overall Length
15 15/16 in
Shaft Dia.
5/8 in
Lead Length
6 in
Shaft Length
1 7/8 in
Frame Size
56C
Shaft Diameter
5/8 in
Wire Rope Length
15 15/16 in
Length
15 15/16 in

Details

Motor Design
Three-Phase
Phase
Three
HP
3 hp
RPM Range
3,001-3,600
Voltage
230V AC, 460V AC
Frame
56C
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
T-Stat
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
Temp. Code
T3B
Weight
54 lb
Voltage Compatibility
230V AC, 460V AC
Motor Bearings
Ball
NEMA Design
B
Hz
60/50 Hz
Includes
Explosion Proof Conduit Box
Hazardous Location Division
Division I
Motor Frame Material
Steel
Conduit Box Location
Not available
HP @ 50Hz
2 hp
Full Load Amps @ 50Hz
3.8 A
Standards
CSA Certified, UL Listed
No. of Speeds
1
Nominal Efficiency
87.5 %
Full Load Amps
3.8 A
Usable @ 200V
Not Usable at 200V
CC Number
Not Available
Motor Service Factor
1
Ins. Class
B
Voltage @ 50Hz
190/380V AC
Nameplate RPM
3,450 RPM
Motor Shaft Rotation
CW/CCW
Motor Application
Hazardous Location
RPM @ 50Hz
2,850 RPM
Service Factor @ 50Hz
1
Item
Hazardous Location Motor
Usable @ 208V
Not Usable at 208V
Motor Shaft Design
Keyed
Max. Ambient Temp.
40 Degrees C
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Hazardous Location Group
Group C, Group D, Group F, Group G
Temperature Code
T3B
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1
Frame Material
Steel
Motor Enclosure Type
Totally Enclosed Fan Cooled
Full Load Current @ 60 Hz
3.8 A
Frequency
60/50 Hz
Mounting Position
Horizontal
Ambient Temperature - Maximum
40 Degrees C
Nameplate Horsepower @ 50 Hz
2 hp
Shaft Design
Keyed
Insulation Class
B
Nameplate RPM @ 50 Hz
2,850 RPM
Efficiency Rating
Premium Efficiency (IE3)
Full Load Current @ 50 Hz
3.8 A
NEMA Design Class
B
Number of Speeds
1
Application
Hazardous Location
Product Type
Hazardous Location Motor
Nameplate Service Factor @ 50 Hz
1

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 3.8 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
