Dayton

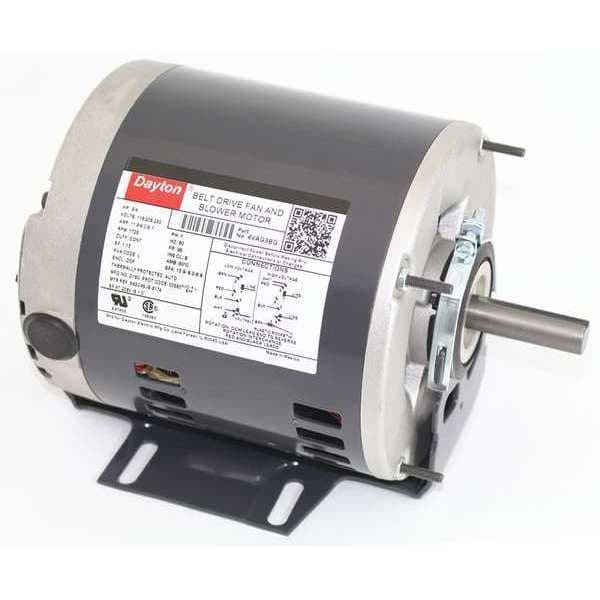

Split-Phase Belt Drive Motor, 3/4 HP, 56 Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM

Hover or click to zoom Tap to zoom
Key Features
  • Item: Belt Drive Motor
  • Motor Design: Split-Phase
  • Motor Enclosure Design: Open Dripproof
  • HP: 3/4
  • No. of Speeds: 1
  • RPM Range: 1,701-1,800
  • Nameplate RPM: 1,725
  • Voltage: 115/208-230V AC
See full product details
$395.14
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Dayton #4VAG3BG Specifications

  • Item: Belt Drive Motor
  • Motor Design: Split-Phase
  • Motor Enclosure Design: Open Dripproof
  • HP: 3/4
  • No. of Speeds: 1
  • RPM Range: 1,701-1,800
  • Nameplate RPM: 1,725
  • Voltage: 115/208-230V AC
  • Frame: 56
  • Motor Mounting Type: Cradle Base
  • Shaft Dia.: 5/8 in
  • Motor Thermal Protection: Auto
  • Motor Service Factor: 1.15
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
  • Phase: Single
  • Motor Application: HVAC/R
  • Motor Sub Application: Belt Drive Fan/Blower
  • Motor Mounting Position: All Angle
  • Overall Length: 9 13/16 in
  • Frame Material: Rolled steel
  • Resilient Ring Dia.: 2 1/4 in
  • Full Load Amps: 11.8/6.1-6.0
  • Motor Shaft Rotation: CW/CCW
  • Duty: Continuous
  • Hz: 60
  • Body Dia.: 6 1/2 in
  • Nominal Efficiency: 65.6 %
  • Motor Frame Material: Rolled Steel
  • Max. Ambient Temp.: 60 Degrees C
  • Mounting Stud Pattern: 4-1/4 in x 4-1/4 in
  • Shaft Length: 1 7/8 in
  • Ring to Ring Center: 7 7/16 in
  • Footnotes: Usable On 208V At 1.0 Service Factor
  • Motor Bearings: Ball
  • Ins. Class: B
  • Length Less Shaft: 7 15/16 in
  • Standards: CSA Certified (258501), UL Recognized (E37403)
  • Duty Cycle: Continuous
  • Country of Origin (subject to change): Mexico

Description

Belt Drive Motor, Single Phase, Motor Design Split-Phase, 3/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, 11.8/6.1-6.0 Full Load Amps, 56 Frame, 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Shaft Dia. 5/8 in
