Shop LEESON

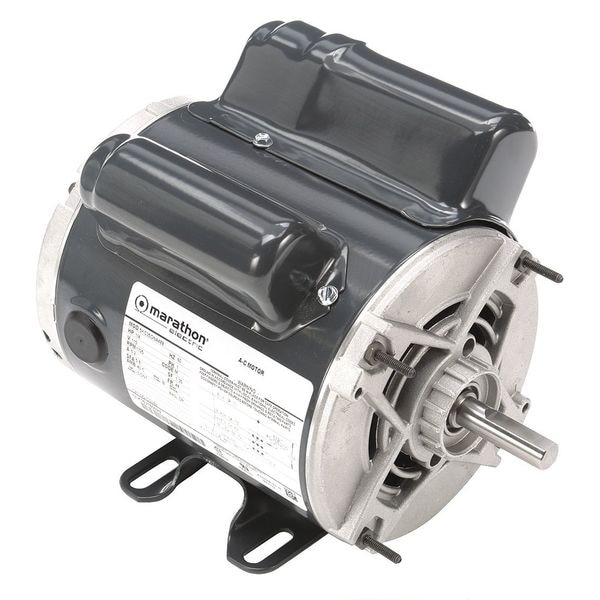

Instant Rev Motor, 1/4 HP, 1725 RPM, 115 V

  • Mfr # 5KC35GNA488

  • Zoro # G2870113

product price:
$
320.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Motor Enclosure Design
Open Drip Proof
HP
1/4 hp
Nameplate RPM
1,725 RPM
Frame
48
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5KC35GNA488
Zoro #
G2870113
UPC #
-
Country of Origin
Mexico
Item
Instant Reverse Motor
Motor Design
Capacitor-Start
Motor Enclosure Design
Open Drip Proof
HP
1/4 hp
Nameplate RPM
1,725 RPM
Frame
48
Voltage
115V AC
Full Load Amps
5.2 A
Phase
Single
Motor Thermal Protection
None
Ins. Class
B
Motor Mounting Type
Rigid Base
Motor Bearings
Ball
Number of Wires
4
Motor Shaft Design
Flat
Motor Mounting Position
All Angle
Ambient Temperature
40 Degrees C
Application
For Door Operators, Machine Tools, Cranes, Hoists, Gates and Remote Control Instant Reversibility
Motor Service Factor
1.35
Hz
60 Hz
Motor Application
General Purpose
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
RPM Range
1,701-1,800
Standards
CSA, UL Recognized
Nominal Efficiency
52.6 %
Motor Shaft Rotation
CW/CCW
No. of Speeds
1
Weight
14 lb
Extended Thru-Bolts
Yes
Conduit Box Location
Exterior
Motor Frame Material
Steel
Duty Cycle
Continuous
Max. Ambient Temp.
40 Degrees C
Usable @ 208V
Not Usable at 208V

Description

Instant Reverse Motor, Single Phase, Motor Design Capacitor-Start, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 5.2 A, 48 Frame, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Number of Wires 4, Motor Frame Material Steel
