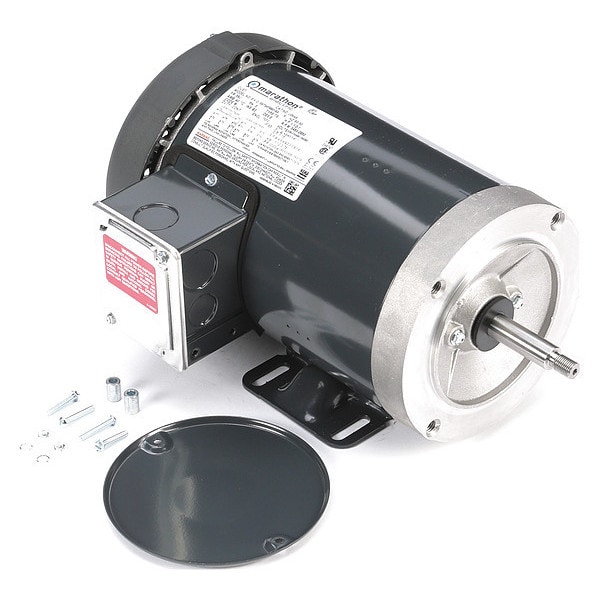

Jet Pump Motor, 3-Phase, 1-1/2 HP, 4.0/2.0A

  • Mfr # 056T34F99018
  • Zoro # G8498108
product price:
$
539.99
/ea
Free Shipping & Returns

Key Features

Motor Thermal Protection
None
Hz
50/60 Hz
Motor Application
Pump
Overall Length
13 13/16 in
Max. Ambient Temp.
40 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056T34F99018
Zoro #
G8498108
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
13 13/16 in
Shaft Length
2 5/8 in
Shaft Dia.
5/8 in
Length Less Shaft
11 1/4 in
Body Dia.
7.4 in
Bolt Circle Dia.
5 7/8 in
Shaft Diameter
5/8 in
Bolt Circle Diameter
5 7/8 in
Body Diameter
7.4 in
Frame Size
56J
Wire Rope Length
13 13/16 in
Length
13 13/16 in

Details

Motor Thermal Protection
None
Hz
50/60 Hz
Motor Application
Pump
Max. Ambient Temp.
40 Degrees C
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Motor Service Factor
1.15
Ins. Class
B
Duty
Continuous
CC Number
CC003A
Nameplate RPM
3,450
Item
Jet Pump Motor
Motor Shaft Rotation
CW/CCW
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Shaft Design
Threaded
Full Load Amps
4.2-4.0/2.0 A
Shaft Material
Stainless Steel
Nominal Efficiency
85.5 %
HP
1 1/2
Frame
56J
Motor Sub Application
Jet Pump
Motor Mounting Position
Horizontal
Motor Mounting Type
Face/Base
Standards
CE Mark, CSA Certified, UL Recognized
Phase
Three
Motor Bearings
Ball
Voltage
208V AC to 230V AC, 460V AC
Motor Design
Three-Phase
RPM Range
3,001-3,600
Green Certification or Other Recognition
NEMA Premium(R) Rated
Duty Cycle
Continuous
Conduit Box Location
Exterior
Weight
39 lb
NEMA Design
B
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Voltage @ 50Hz
230-460
Conduit Box Position
F1
Service Factor @ 50Hz
1.15
Full Load Amps @ 50Hz
4.2-4.0/2.00
Usable @ 208V
Usable at 208V
No. of Speeds
1
HP @ 50Hz
1 1/2
Includes
Drip Cover
RPM @ 50Hz
3,450
Frame Material
Steel
Insulation Class
B
Number of Speeds
1
Application
Pump
Motor Enclosure Type
Totally Enclosed Fan Cooled
Sub Application
Jet Pump
Efficiency Rating
Premium Efficiency (IE3)
Nameplate Service Factor @ 60 Hz
1.15
Nameplate Horsepower @ 50 Hz
1 1/2 hp
Mounting Position
Horizontal
Number of Wires
9
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Nameplate RPM @ 50 Hz
3,450 RPM
Full Load Current @ 60 Hz
4.2-4.0/2.0 A
Frequency
60/50 Hz
NEMA Design Class
B
Shaft Design
Threaded
Product Type
Pump Motor
Nameplate Service Factor @ 50 Hz
1.15
Full Load Current @ 50 Hz
4.2-4.0/2.00 A

Description

Jet Pump Motor, Body Dia. 7.4 in, Bolt Circle Dia. 5 7/8 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 56J, Hz 60/50, Full Load Amps 4.2-4.0/2.0, Full Load Amps @ 50Hz 4.2-4.0/2.00, HP 1 1/2, HP @ 50Hz 1 1/2, Includes Drip Cover, Ins. Class B, Length Less Shaft 11 1/4 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase, Motor Efficiency Group NEMA Premium Efficient
