  6. Motor, 2 HP, 1745,145JM, 208-230/460V

This item is Discontinued.

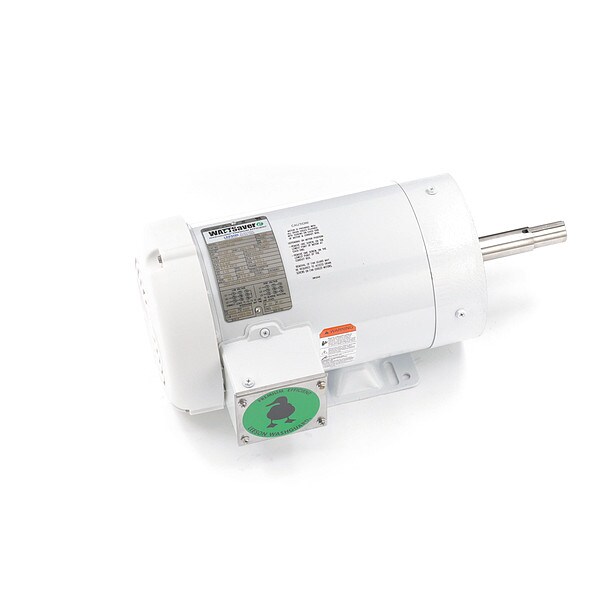

Leeson Motor, 2 HP, 1745,145JM, 208-230/460V 122190.00

Motor, 2 HP, 1745,145JM, 208-230/460V (Discontinued)

  • Mfr # 122190.00
  • Zoro # G100722953
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
122190.00
Zoro #
G100722953
UPC #
691720245507
Country of Origin
China

Dimensions

Shaft Dia.
7/8 in
Manufacturers Warranty Length
1 yr
Shaft Length
4 1/4 in
Overall Length
16 7/16 in
Body Dia.
7.3 in
Length Less Shaft
12 5/16 in
Bolt Circle Dia.
5 7/8 in

Details

Item
Washdown Motor
Motor Design
3-Phase
Phase
Three
HP
2
RPM Range
1,701-1,800
Voltage
208-230/460V AC
Frame
145JM
Motor Frame Material
Rolled Steel
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Max. Ambient Temp.
104 Degrees F
Motor Shaft Rotation
CW/CCW
Motor Bearings
Ball
Conduit Box Location
Exterior
Ins. Class
F
Standards
CE Certified, CSA Certified, UL Recognized
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Duty Cycle
Continuous
Bearing Protection
Shaft Shields
Finish
Unfinished
No. of Speeds
1
Hz
60
Usable @ 208V
Yes
Removable Base
No
Motor Shaft Design
Keyed
Motor Mounting Position
Horizontal
Usable @ 200V
No
Motor Service Factor
1.2
Motor Application
Washdown
NEMA Design
B
Nameplate RPM
1,745
Full Load Amps
6.0-5.8/2.9 A
Drain Plugs
(1) Drain Plugs in Conduit Box
Shaft Material
Stainless Steel
Weight
54 lb
Motor Mounting Type
Rigid Base
Nominal Efficiency
86.5 %

Description

Washdown Motor, Three Phase, Motor Design 3-Phase, 2 HP, Nameplate RPM 1,745, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 6.0-5.8/2.9 A, 145JM Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1.2, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base
