Shop LEESON

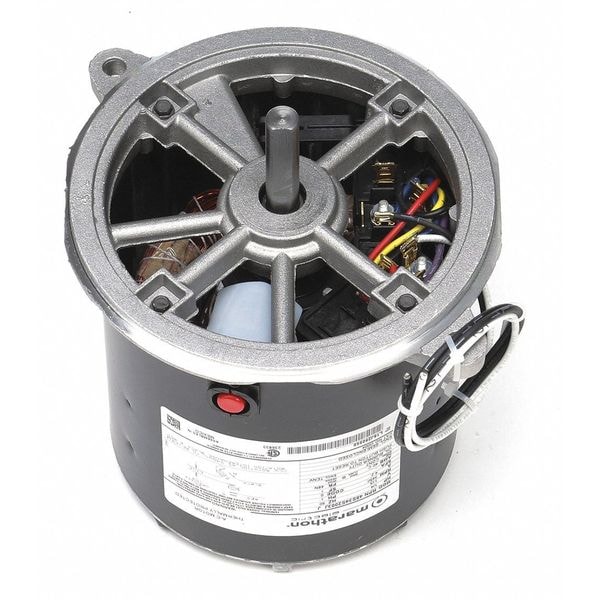

Oil Burner Motor, 1/4 hp

  • Mfr # 048S34S2003
  • Zoro # G4770862
product price:
$
176.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Motor Enclosure Design
Open Air-Over
HP
1/4
Nameplate RPM
3,450
Frame
48NZ
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
048S34S2003
Zoro #
G4770862
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
2 1/8 in
Manufacturers Warranty Length
1 yr
Shaft Dia.
1/2 in
Body Dia.
6 1/2 in
Length Less Shaft
6 in
Lead Length
20 in
Overall Length
8 1/8 in
Shaft Diameter
1/2 in
Body Diameter
6.5 in
Frame Size
48NZ
Wire Rope Length
8 1/8 in
Length
8 1/8 in

Details

Item
Oil Burner Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open Air-Over
HP
1/4
Nameplate RPM
3,450
Frame
48NZ
Voltage
115V AC
Motor Mounting Type
Face
Motor Shaft Rotation
CW/CCW
Motor Application
HVAC/R
RPM Range
3,001-3,600
Motor Service Factor
1
Motor Bearings
Sleeve
Ins. Class
B
Phase
Single
Ambient Temperature
40 Degrees C
Full Load Amps
4.2 A
Motor Thermal Protection
Manual
Standards
CSA Certified, UL Recognized
Motor Sub Application
Oil Burner
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC
Max. Ambient Temp.
40 Degrees C
Hz
60 Hz
Motor Flange Material
Aluminum
Motor Shaft Design
Flat
Motor Flange Type
Ventilated
Features
NEMA N or M Flange Direct, Two Bolt
Weight
13 lb
Conduit Box Position
F1
Nominal Efficiency
56.5 %
Conduit Box Location
Exterior
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
No. of Speeds
1
Removable Base
No
Duty Cycle
Continuous
Output Watts
190 W
Usable @ 208V
Not Usable at 208V
Mounting Position
Horizontal
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Sleeve
Manufacturers Warranty
1 yr
Product Type
Oil Burner Motor
Number of Speeds
1
Duty
Continuous
Full Load Current @ 60 Hz
4.2 A
Wattage
190 W
Nameplate Service Factor @ 60 Hz
1
Application
Oil Burner
Motor Enclosure Type
Open Drip Proof
Flange Type
Ventilated
Frequency
60 Hz
Drive Type
Direct Drive
Insulation Class
B
Sub Application
Oil Burner
Frame Material
Steel
Capacitor Required
Capacitor Not Required
Shaft Design
Flat

Description

HVAC Motor, Single Phase, Motor Design Split-Phase, 1/4 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115V AC, 4.2 A Full Load Amps, 48NZ Frame, Output Watts 190 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Face, Motor Frame Material Steel
