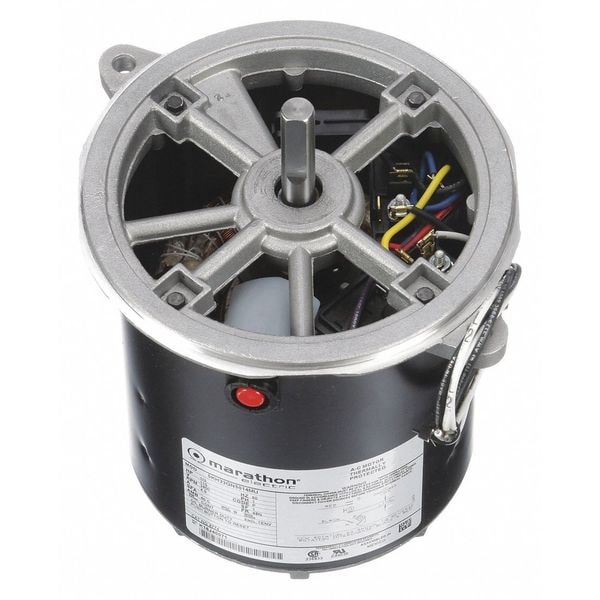

Oil Burner Motor, 1/3 hp

  • Mfr # 5KH33GN5014U
  • Zoro # G4857979
product price:
$
221.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Motor Enclosure Design
Totally Enclosed Nonventilated
HP
1/3
Nameplate RPM
3,450
Frame
48N
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5KH33GN5014U
Zoro #
G4857979
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
2 1/8 in
Manufacturers Warranty Length
1 yr
Body Dia.
5 5/8 in
Lead Length
20 in
Length Less Shaft
6 3/8 in
Overall Length
8 7/16 in
Frame Size
48N
Body Diameter
5.6 in
Shaft Diameter
1/2 in
Wire Rope Length
8 7/16 in
Length
8 7/16 in

Details

Item
Oil Burner Motor
Motor Design
Split-Phase
Motor Enclosure Design
Totally Enclosed Nonventilated
HP
1/3
Nameplate RPM
3,450
Frame
48N
Voltage
115V AC
Motor Mounting Type
Face
Motor Shaft Rotation
CW/CCW
Motor Application
HVAC/R
Max. Ambient Temp.
40 Degrees C
Standards
CSA Certified, UL Recognized
Motor Bearings
Sleeve
Motor Service Factor
1
Phase
Single
RPM Range
3,001-3,600
Ambient Temperature
40 Degrees C
Motor Thermal Protection
Manual
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC
Motor Sub Application
Oil Burner
Motor Shaft Design
Flat
Ins. Class
B
Full Load Amps
4.9 A
Motor Flange Type
Ventilated
Motor Flange Material
Aluminum
Hz
60 Hz
Features
NEMA N or M Flange Direct, Two Bolt
Weight
15 lb
Motor Frame Material
Steel
Usable @ 208V
Not Usable at 208V
Motor Mounting Position
All Angle
Removable Base
No
Nominal Efficiency
62.6 %
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
No. of Speeds
1
Extended Thru-Bolts
No
Sub Application
Oil Burner
Shaft Design
Flat
Nameplate Service Factor @ 60 Hz
1
Manufacturers Warranty
1 yr
Frame Material
Steel
Flange Type
Ventilated
Application
Oil Burner
Insulation Class
B
Frequency
60 Hz
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
4.9 A
Duty
Continuous
Wattage
250 W
Drive Type
Direct Drive
Product Type
Oil Burner Motor
Mounting Position
All Angle
Bearing Type
Sleeve
Number of Speeds
1
Capacitor Required
Capacitor Not Required

Description

HVAC Motor, Single Phase, Motor Design Split-Phase, 1/3 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115V AC, 4.9 A Full Load Amps, 48N Frame, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face, Motor Frame Material Steel, Motor Mounting Position All Angle
