Shop LEESON

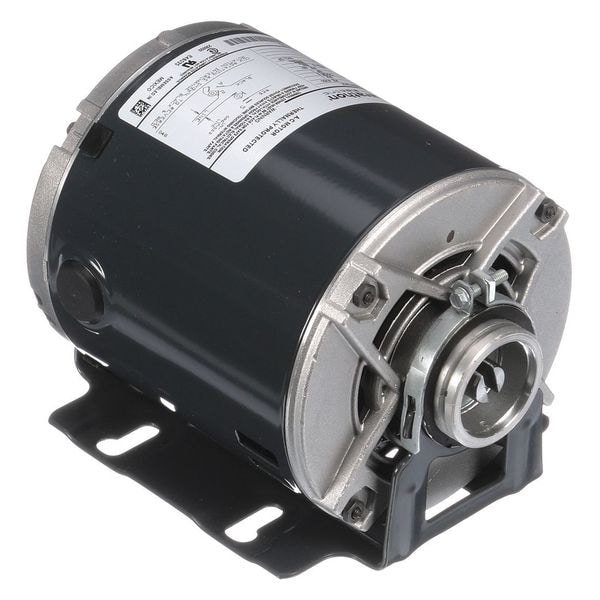

Pump Mtr, Split Ph, 1/4hp, 1725, 208-240, 48Y

  • Mfr # 5KH32GNB813X

  • Zoro # G0824634

product price:
$
232.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/4
Nameplate RPM
1,725
RPM Range
1,701-1,800
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5KH32GNB813X
Zoro #
G0824634
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1/4 in
Overall Length
7 11/16 in
Body Dia.
5.6 in
Length Less Shaft
7 1/2 in
Height
5 13/16 in
Shaft Dia. (In.)
5/8
Frame Size
48Y
Body Diameter
5.6 in
Shaft Diameter
5/8 in
Wire Rope Length
7 11/16 in

Details

Item
Carbonator Pump Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/4
Nameplate RPM
1,725
RPM Range
1,701-1,800
Voltage
208-240V AC
Frame
48Y
Motor Service Factor
1
Hz
60 Hz
Full Load Amps
2.4-2.3 A
Motor Bearings
Ball
Motor Sub Application
Carbonator Pump
Motor Shaft Rotation
CW/CCW
Phase
Single
Max. Ambient Temp.
40 Degrees C
Motor Application
Pump
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Ins. Class
B
Motor Thermal Protection
Auto
Motor Mounting Type
Cradle Base
Standards
CE Mark, CSA Certified, UL Recognized
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
All Angle
No. of Speeds
1
Nominal Efficiency
62.8 %
Usable @ 208V
Usable at 208V
Weight
14 lb
Motor Frame Material
Steel
Duty Cycle
Continuous
RPM @ 50Hz
1,425
Ambient Temperature - Maximum
40 Degrees C
Nameplate RPM @ 50 Hz
1,425 RPM
Frequency
60 Hz
Full Load Current @ 60 Hz
2.3-2.4 A
Product Type
Pump Motor
Mounting Position
All Angle
Insulation Class
B
Number of Speeds
1
Application
Pump
Motor Enclosure Type
Open Drip Proof
Sub Application
Carbonator Pump
Nameplate Service Factor @ 60 Hz
1
Frame Material
Steel
Number of Wires
7
Bearing Type
Ball

Description

Carbonator Pump Motor, Body Dia. 5.6 in, Duty Cycle Continuous, Frame 48Y, Hz 60 Hz, Full Load Amps 2.4-2.3, Height 5 13/16 in, HP 1/4, Ins. Class B, Length Less Shaft 7 1/2 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Split-Phase, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
