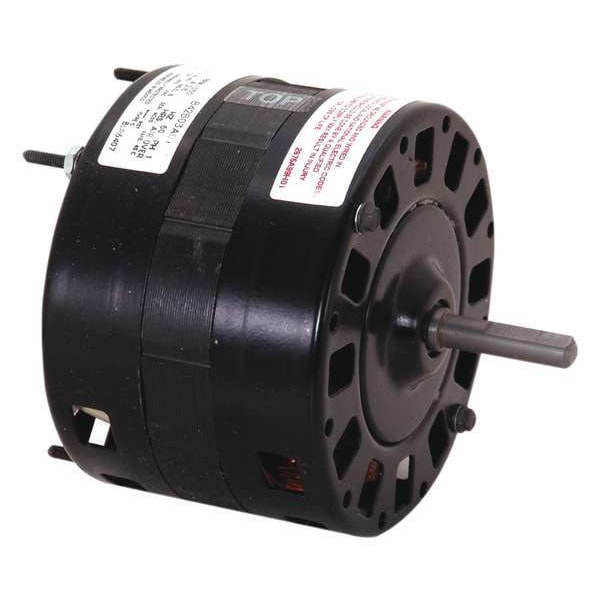

Motor, Sh Pole, 1/15 HP, 1050, 115V, 42Y, OAO

CENTURY| Zoro #: G1904621| Mfr #: BLR6407

$96.95 /ea

This item ships free. Details.Standard ground shipping.
Details:
Ins. Class: B
Voltage: 115
Motor Mounting Type: Stud
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G1904621 Mfr #: BLR6407
Ins. Class: BVoltage: 115
Motor Mounting Type: StudPhase: 1
Stud Size: #8-32Capacitor Required: No
Frame: 42YMotor Thermal Protection: Auto
Motor Application: HVAC/RBolt Circle Dia.: 4-7/16"
HP: 1/15Item: Direct Drive Blower Motor
Motor Mounting Position: HorizontalApplication: Blowers, Fans and Air Circulators
Motor Shaft Rotation: CCWLEMotor Shaft Design: Flat
Nameplate RPM: 1050Duty: Continuous
Mounting Stud Location: Opposite Shaft EndNo. of Speeds: 1
Motor Service Factor: 1.00Motor Enclosure Design: Open Air-Over
Body Dia.: 5"Max. Ambient Temp.: 40 Degrees C
RPM Range: 1001-1100Hz: 60
Motor Bearings: SleeveShaft Dia.: 3/8"
Length Less Shaft: 3-15/16"Shaft Length: 1-5/8"
Motor Design: Shaded PoleMounting Stud Pattern: 2-1/4" x 3-7/8"
Motor Sub Application: Direct Drive Fan/BlowerVoltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240
Full Load Amps: 2.8Standards: UL Recognized, CSA Certified
Country of Origin (subject to change): Mexico

Description

Direct Drive Blower Motor, Shaded Pole Motor Type, Open Air-Over Enclosure, 1/15 HP, 1050 Nameplate RPM, Voltage 115, 2.8 Full Load Amps, 60 Hz, 1 Phase, 42Y Frame, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous, Number of Speeds 1, Mounting Stud, Shaft Orientation Horizontal, Bearings Sleeve, Thermal Protection Auto, Rotation CCWLE, Body Dia. 5 In., Length Less Shaft 3-15/16 In., Shaft Dia. 3/8 In., Shaft Length 1-5/8 In., Shaft Type Flat
